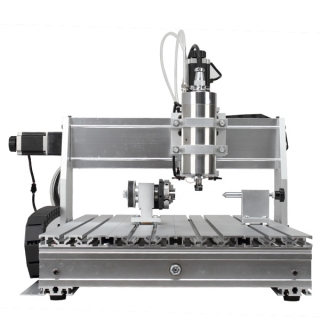

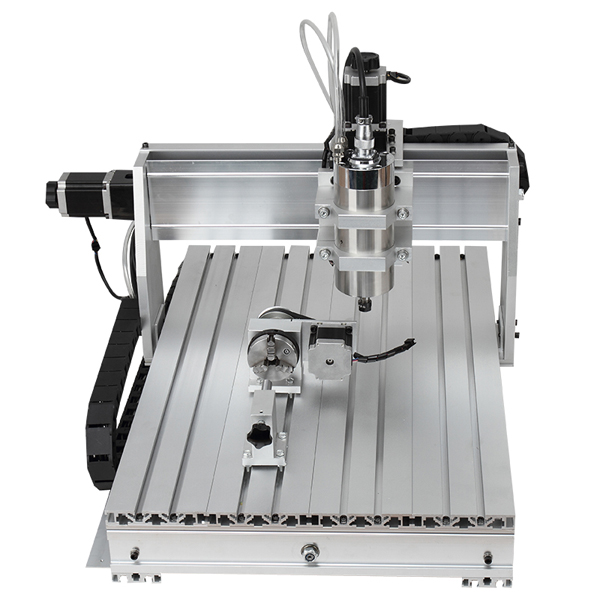

Buy CNC6040/ CNC 6040 4 Axis CNC Mini Router (1500W Spindle)

Buy CNC6040/ CNC 6040 4 Axis CNC Mini Router from ChinaCNCzone. We can not just supply high quality cnc6040/ cnc 6040 4 axis CNC mini routers, but more can save your time, your money, your trouble and provide solutions.

We're here to help:

Easy ways to get the answers you need.

0086-755-83692414
0086-755-89378931
Sunny-scotle

Highlights for this CNC6040/ CNC 6040 4 Axis CNC Mini Router (1500W Spindle)
1. 1500W Water Cooled Spindle

2. With live video support.

3. Ballsrew high precision

4. Independent power supply for mainboard, prolong using life.

5. Mach 3 software is simple and intelligent, can be connected with computer.

6. Limited switch added

7. Auto-Checking function

8. With 4 axis, can engrave cylinder object.

9. Updated with USB interface (New Add)








ChinaCNCzone Team

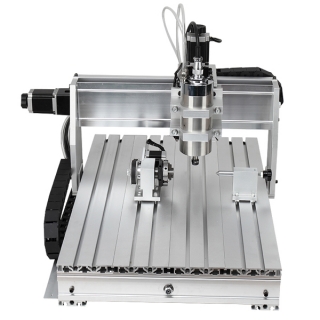

ChinaCNCzone Mini CNC Router




 ChinaCNCzone Certificate


Technical detailes for this CNC6040/ CNC 6040 4 Axis CNC Mini Router

Effective working travel580(X)mm*400(Y)mm*75(Z)mm
Shape dimension880*670*530mm
Max.workpiece dimension580mm*400mm<90mm
Work table dimension750mm*480mm
Frame materialsaluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let  counterfeiters dwarfs
acceptable material thickness≤100mm
Driving unitsX/Y/Z axis1605 ballscrew
Sliding unitsX axisDia.16mm chrome plate shafts
Y axisDia.20mm chrome plate shafts
Z axisDia.13mm chrome plate shafts
Stepping motor type 57 two-phase 3A 150NNaN
Spindle motorBrand new 800W/1500W water cooling spindle, 24000RPM
Principal axis colletER11/3.175 mm/6mm
Repeat accuracy0.05mm
Spindle precisionradial beat acuities 0.03 mm
Carving InstructionsG code/TAB files/nc file/NCC files
Communication interfacethrough parallel connection with computer
Software environmentWindows xp
Maximum speed0-4000mm/min
Carving speed0-2500mm/min (different materials differ)
Control unitToroidal transformer + PWM power supply module + TB6560 3axis drive board
Computer connectionon board palrallel port
Command codeG code
Acceptable softwareMach3
ProtectionEmergency stop button
Operating VoltageAC110V/AC220V

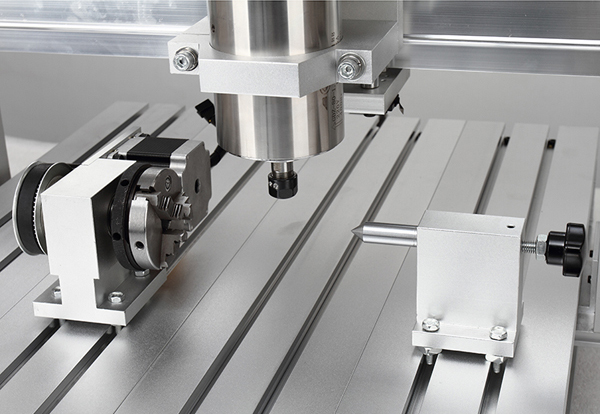

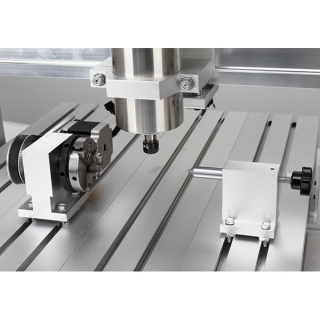

The 4th axis of Mini CNC 6040 1500W technical detail
Size136*116*92 mm
Centre-Height34mm
Clamping diameter50mm Fingertight fitting
Reduction tatio1:03
Error Range0.1


This CNC6040/ CNC 6040 4 Axis CNC Mini Router can be widely used in diffirent areas and

can engrave diffirent material.
A. Widely used not only for Aluminum but also acrylic, brass, wood, PVC, PCB and so on.
B. Ideal for milling, engraving, drilling & routing.
C. For Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes, Building Model Making, Advertising Signs,Artwork,Crafts,Aircraft Models,RC Model parts

Mini CNC Router use

Mini CNC Router Application
CNC Router 6040 Can Do

3040 CNC Router for Aluminum


Packing list for CNC6040/ CNC 6040 4 Axis CNC Mini Router

1pcs CNC 6040 machine

1pcs controller box with invertor installed in it
1pcs 1.5KW spindle

1pcs parallel cable
1pcs power cable
6pcs engraving bit
1set of clamp tool

PS: Provide machine manual and mach3 software for free after you buy it.
