Buy SL-1060 100W DSP USB CO2 Laser Cutter Laser Cutting Engraving Machine 1000 x 600mm from ChinaCNCzone main features:

Working ares: 600x1000mm

New DSP controller box no need to connect to computer.

17HW4410H Step motor

Industrial level laser head

Light system: Light system

Colour: bule and white

Adjustable Speed and Power

USB Interface

Air Assist, Remove heat and combustible gases from the cutting surface

Embedded Exhaust Fan, Easier install, Safer transport

Rotary Axis, Engrave any cylindrical object

Cellular platform

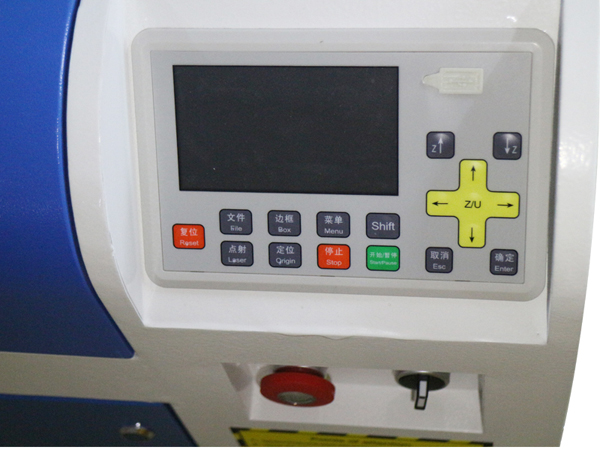

Intuitive Control Panel, Set Speed, power and more controls directly from the laser

Water Cooling and Protection System with a chiller.

Laser positing

Emergency Stop Buttom.

Larger Size, 600*1000mm working area.

Lifting platform is electric control, 0-25cm.

Laser focal length: 5CM

A limit switch let it can only work when the cover is closed.

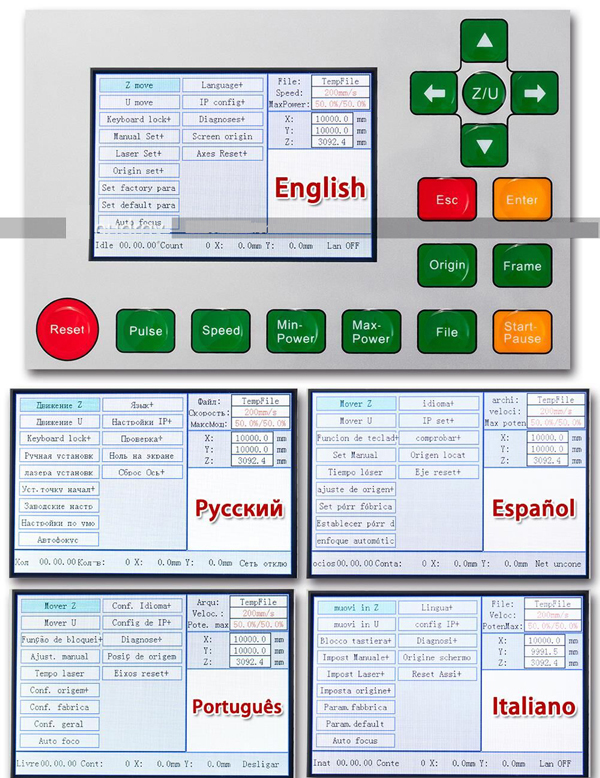

There are Chinese, English, Russian, Portuguese,Italian languages in the control panel for your selection


Operating interface


Pictures for SL-1060 100W DSP USB CO2 Laser Engraving Machine

100W-Co2-USB-Laser-Cutting-Machine-With-DSP-System-Laser-Cutter-Engraver-Chiller-1000-x-600

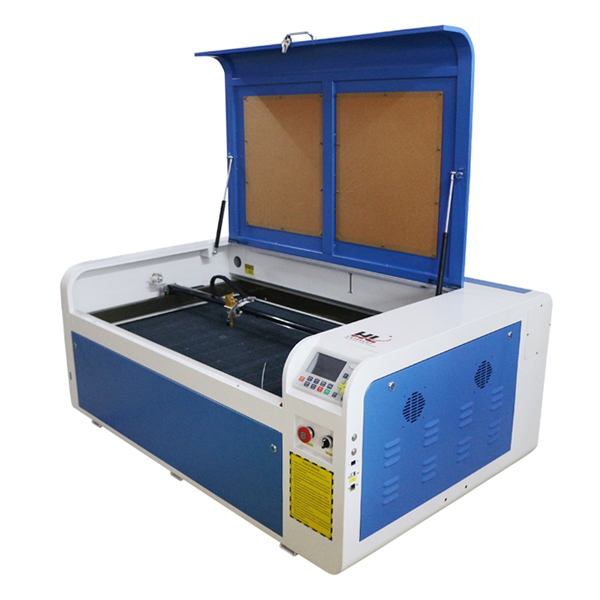

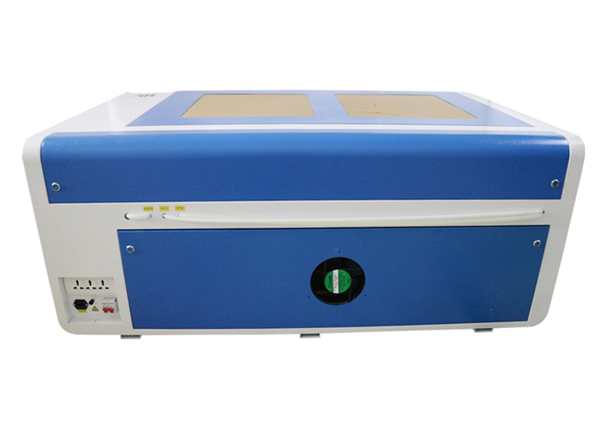

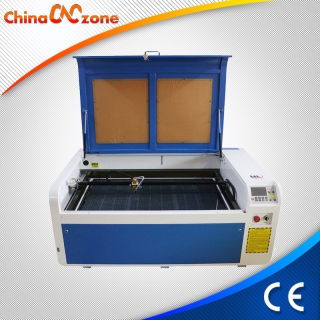

dsp 1060 co2 laser engraving machine

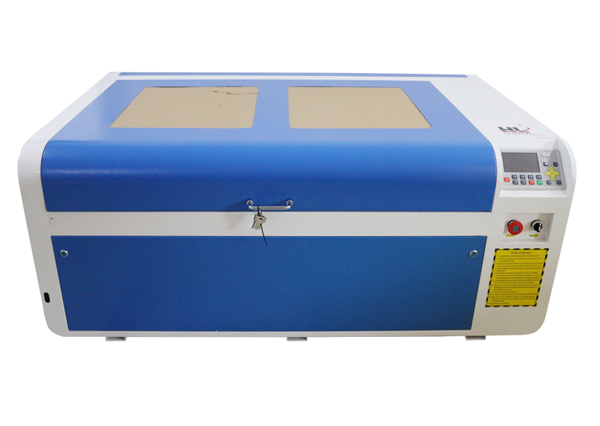

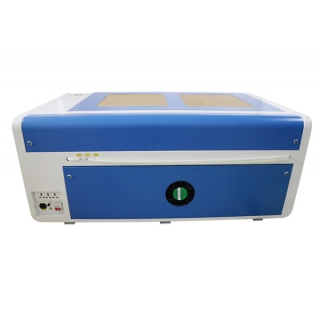

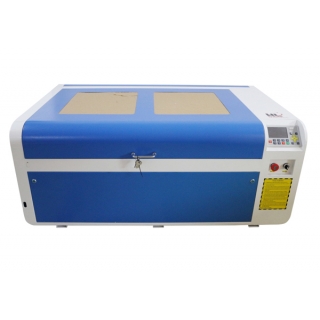

Co2 USB Laser Cutting Machine

Co2 USB Laser Cutting Machine

Co2 USB Laser Cutting Machine

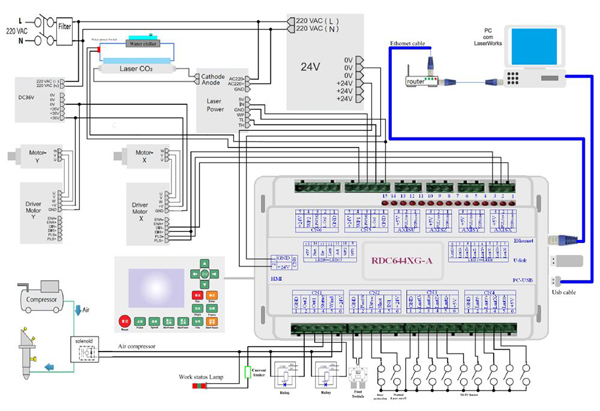

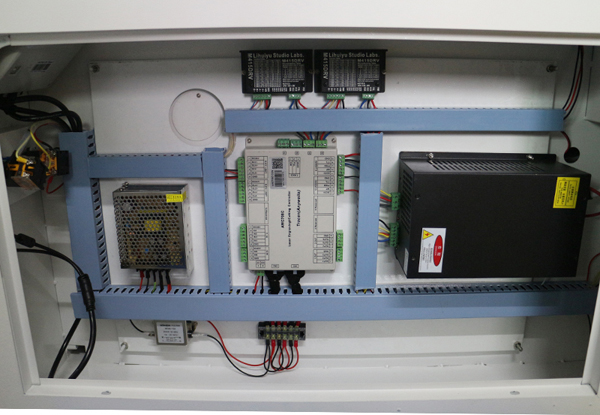

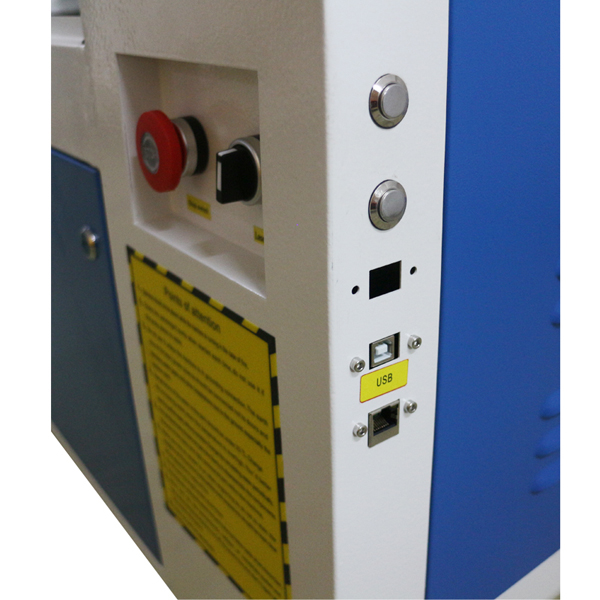

DSP Control cables

DSP Control cables

Red dot Positioning Function (showing outline or laser dot position)

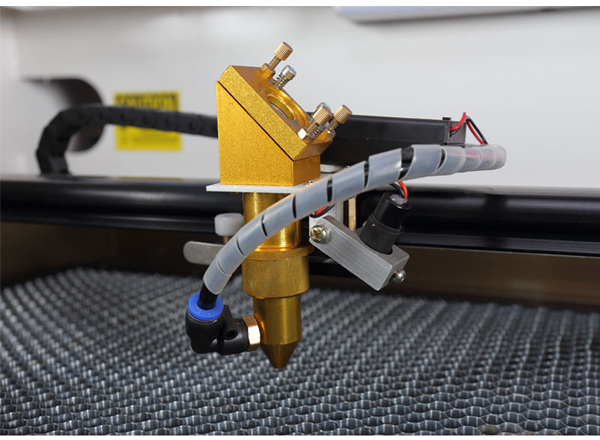

DSP 1060 CO2 Laser Engraver Cutting Machine laser head

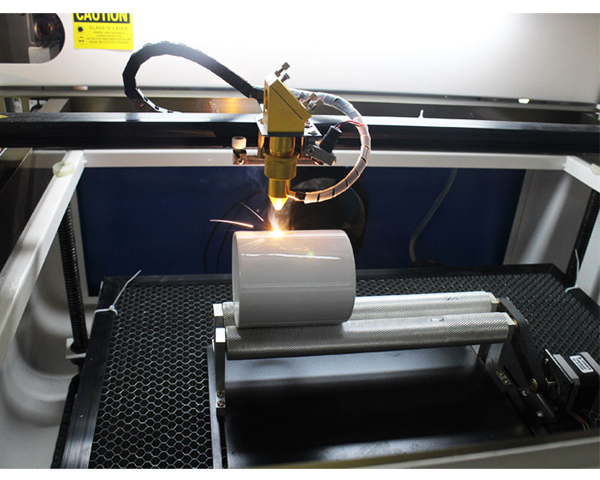

DSP 1060 CO2 Laser Engraver Cutting Machine laser beam

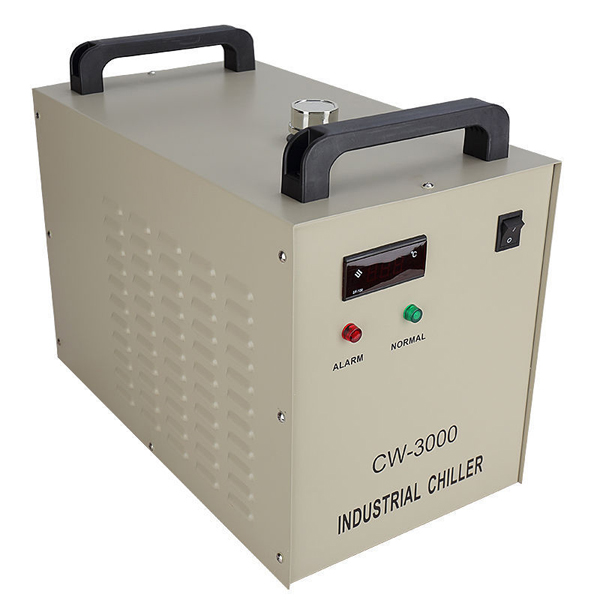

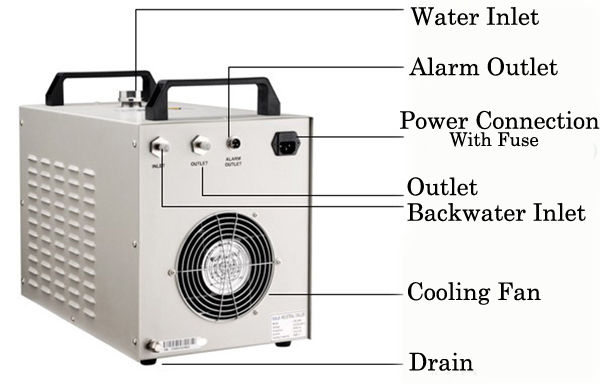

The CW-3000 INDUSTRIAL CHILLER

DSP 1060 CO2 Laser Engraver water Chiller

DSP 1060 CO2 Laser Engraver water chiller

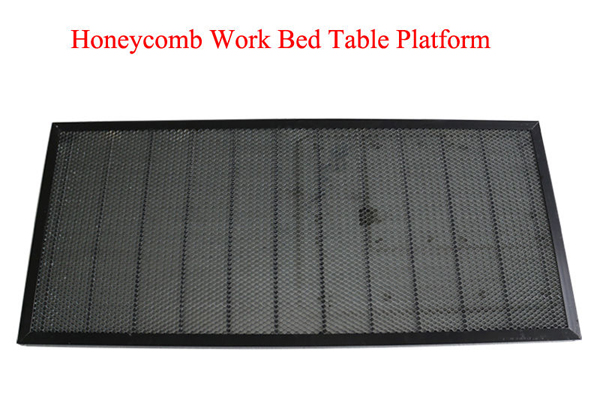

Honeycomb (for soft materials engraving and cutting)

Honeycomb (for soft materials engraving and cutting)

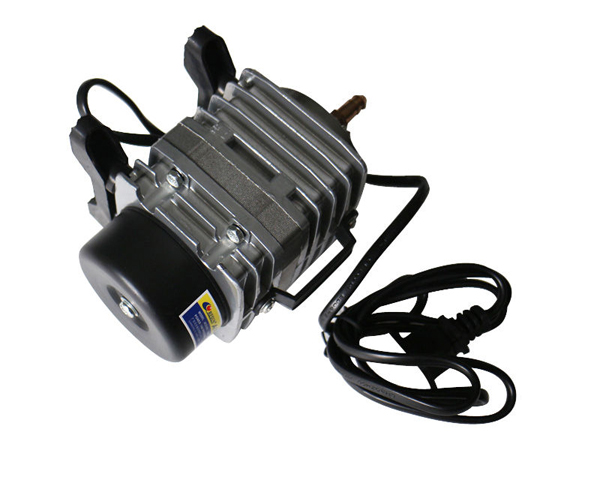

Air Pump for this SL-1060 100W DSP Control CO2 USB Laser Cutter Laser Cutting Engraving Machine

DSP 1060 CO2 Laser Engraver air pump

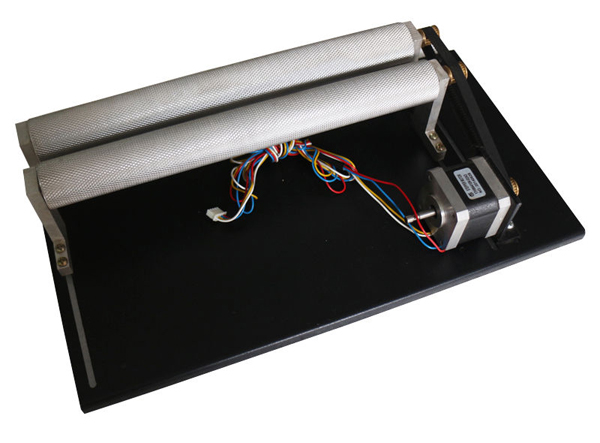

Rotatory Axis for this SL-1060 100W DSP Control CO2 USB Laser Cutter Laser Cutting Engraving Machine

DSP 1060 CO2 Laser Engraver rotatory axis

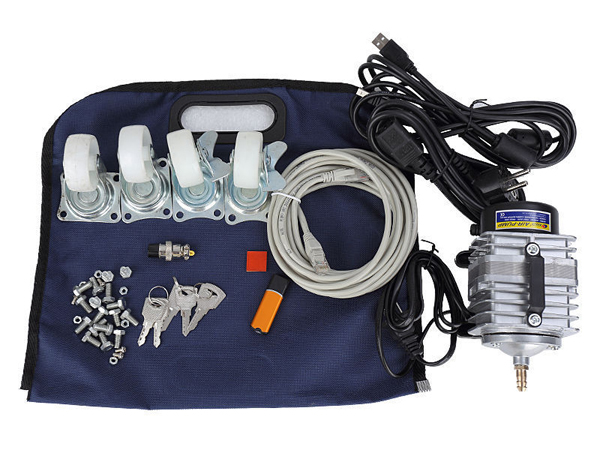

DSP 1060 CO2 Laser Engraver accessories

Kind Note:You may interested in below article:

How to Connect the Water Chiller & Air Pump to ChinaCNCzone Desktop CO2 Laser Engraving Machine?

Parameters for this DSP 1060 CO2 Laser Cutter
Total power<300W
Laser power100W
Laser typeCO2 laser engraving machine
Power supplyAC 220V/110V
Working area600*1000 mm
Engraving depth0-20 mm (different material differ)
Cutting depth0-20 mm
Engraving speed0-800mm/s
Cutting speed0-800mm/s
Lifting platform0-250 mm Honeycomb Worktable
Locating precision<0.01 mm
Min shaping characterCharacter: 2*2mm, Letter: 1*1mm
Working temperature5℃-45℃
Working humidity5%-95%
Resolution ratio≤1000dpi
Data transfer interfaceUSB 2.0 (offline)
System environmentWindows XP / Win 7 / Win 8
CoolingWater Cooling and protection system with chiller
Graphic Format SupportedThe Files which CorelDraw & WinsealXP can identify
(BMP,JPEG,PLT,CDR,AI,) TIFF,PCX,DIB,TIF
Compatible softwareCorelDraw,WinsealXP
Color separationNO
Sloping engravingNO
ProtectionEmergency stop buttom and Stop working when water broken
Machine Dimensions140*75*58 cm
PackingWooden box with foam inside
Package Dimension157*94*78 cm
Package Weight230 kg (Counted by volumetric weight )



This SL-1060 100W DSP Control CO2 USB Laser Cutter Laser Cutting Engraving Machine is suitable to: woodworking, textile cutting, industrial prototyping, industrial marking,signmaking, medical part marking, aerospace, architectural modeling, specialty advertising, plastics fabricating, flexo, point of purchase, rubber stamps, picture framing, gift manufacturing, bar coding,engraving, gasket cutting, puzzles, cabinetry, awards & recognition, personalized pens, door pulls,cut scroll patterns, games & toys, finger joints, inlays & overlays, fraternity paddles, music boxes,light switch plates, jewelry boxes, parts marking, router templates, desk .


CO2 Laser engraving machine can do

CO2 Laser engraving machine sample

DSP 1060 CO2 Laser Engraver Cutting Machine Can Do 1

DSP 1060 CO2 Laser Engraver Cutting Machine Can Do

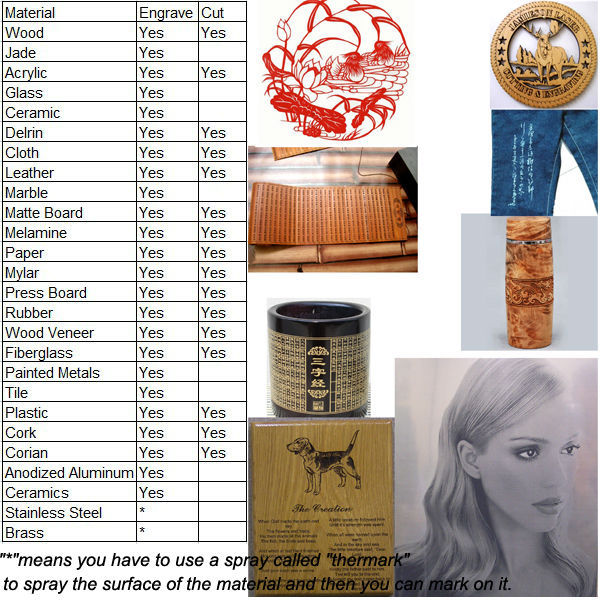

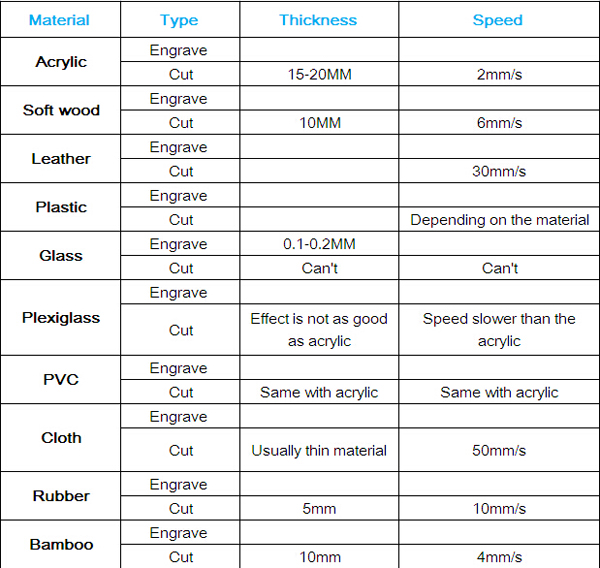

Parameters for different material


Packing list for this SL-1060 100W DSP USB CO2 Laser Cutter Laser Cutting Engraving Machine

1 x DSP 1060 100W C02 Laser engraving machine

1 x Laser engraving software (down load link)

1 x User Manual (down load link)

1 x CW-3000 INDUSTRIAL CHILLER

1 x Air exhaust fan

1 x Air Pump

1 x Communication cable and USB cable

1 x Rotation axis

1 x Honeycomb work platform


Two packages:

1.Machine Package:Wooden box with foam inside

Package dimension:154*112*77CM

Gross weight:178KG

Package weight:267KG

2.Chiller Package:Carton box with foam inside

Package dimension:57*48*35CM

Gross weight:12KG

Package weight:20KG
