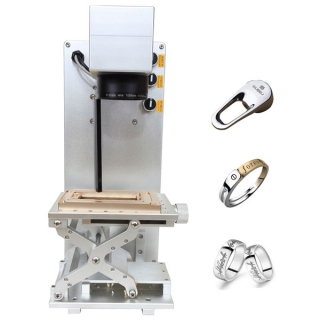

10W/20W/30W/50W Mini Portable Fiber Laser Marking Machine and Laser Engraver for Metal Engraving Marking

Compared with our mini CNC router such as CNC 6040, CNC 6090HY 3040 this Portable Fiber Laser Marking Machine is specially designed for metal and non -metal engraving

Most price competive with high configuration.

Main features for this S004 Mini Portable Fiber Laser Marking Machine and Laser Engraver for Metal Engraving Marking

1.Optical Fiber Laser, environment friendly, easy maintenance.
2.Life of the laser can be up to 100000 hours.
3.Small volume and weight, less than 35KGS.
4.Easy operation software, compatible with PHOTOSHOP, CORELDRAW, AUTOCAD
5.Runs without consumable spare parts, no need maintenance, great for continuous working.

6.The galvanometer scanning system is made of optical scanner and servo control of two parts, the whole system adopts new technology, new material, new design and manufacturing.
7.The smallest volume, suitable for harsh environment, friendly interface, easy operation.
8.Adopts the high quality, high energy, high stability fiber laser source, prime precision optical galvanometer assembly and the industry’s top software.
9.Compact, lightweight, simple interface, flexible and adjustable processing direction.
10.The master switch, red light switch and galvanometer switch.
11. High precision scale.

12.Has 10W/20W/30W/50W for selection

13. The work range: 110*110mm  150*150mm  200*200mm for selection

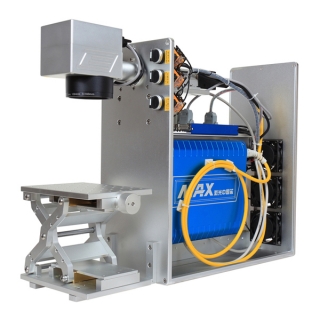

This Mini Portable Fiber Laser Marking Machine and Laser Engraver for Metal Engraving Marking mainly consists of four parts: fiber laser, galvanometer scanning system, computer control system and the worktable
Fiber laser parameters


fiber laser marking machine boards

Fiber laser marking machine support system

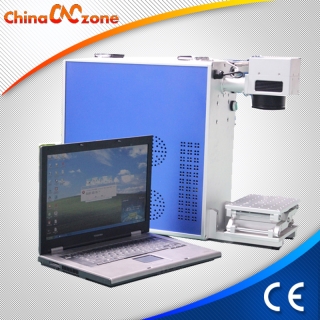

More pictures for this Updated S004 10W/20W/30W/50W Mini Portable Fiber Laser Marking Machine and Laser Engraver for Metal Engraving Markingmini laser fiber laser marking machine

Fiber laser marking machine

Fiber laser marking machine

fiber laser marking machine fiber laser

fiber laser marking machine

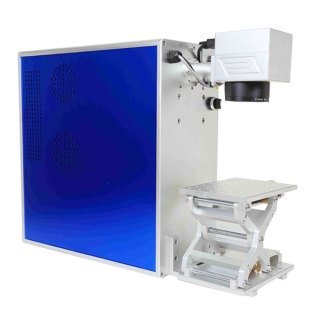

Portable fiber laser marking machine

Portable fiber laser marking machine

Portable Fiber laser marking machine

Portable fiber laser marking machine

Portable fiber laser marking machine

Portable fiber laser marking machine

Portable fiber laser marking machine

fiber laser marking machine Accessories

S004 Mini Portable Fiber Laser Marking Machine more details:








Voltage :110V/220V

Fiber Laser Source:Maxphotonics (RAYCUS /IPG laser optional)

Output power: 10W/20W/30W/50W for selection

Laser wavelength:1064nm

Modulation frequency range:20-100kHz

Speed:0-8000mm/s

Precision:±0.003mm

Minimum line width:0.015mm

Minimum height of characters:0.15mm

Cooling way:Air cooling

Marking range:110*110mm  150*150mm  200*200mm for selection

Laser power supply:0.5KW,220V/50Hz, 110V/60HZ

Rotary device:Optional

Weight:35KGS

pplication industrial for this Portable Fiber Laser Marking Machine : Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.

The material this Mini Portable Fiber Laser Marking Machine can marking:
Engraving bar codes, decorative map, LOGO, factory number, production date, dial on all Metals ( Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card ), Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)








Wooden box

Weight: 35kg

fiber laser marking machine packing
