ChinaCNCzone S001 Automatic Chipset Grinding Milling Engraving Router Machine

1. No need programming,entered already.

2. Do not need computer.

3. Solves the problem of chip’s tilt angle.

4. Size error polished problem solved, automatically set the size of the chip out of the tool path, support manual settings under the knife depth and coordinates.

5. Smart SD card to store data, a full range of Apple IC home position, the chip grinding parameters have been set already, free update.

6. Monitor tool wear by pressure,

7. Knife pressure spindle overrun, protect board.

8. Y axis pinch hand function.

9. Automatically emergency alarm.

10. eight templates, a full range of Apple's original board IC, unlimited upgrades

11. Automatic cleaning system. ( Optional )

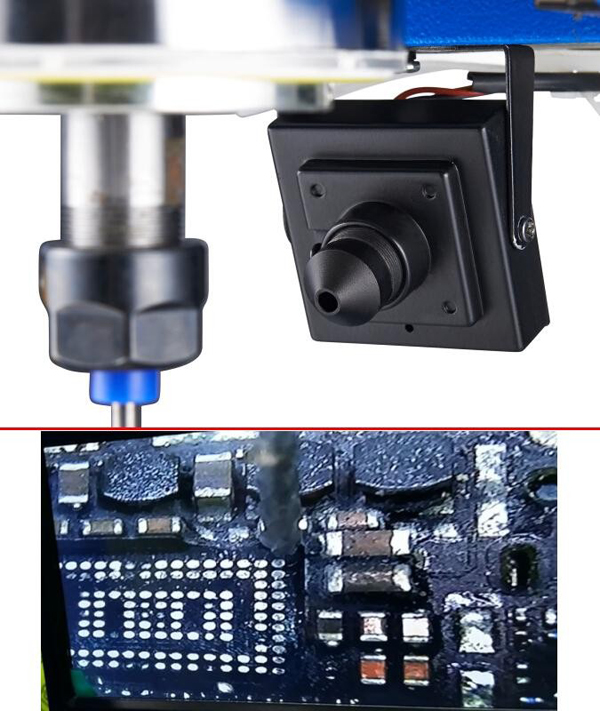

12. HD camera ( Optional ), can manually focus, distinguish polished IC level, monitoring add depth.

13. Touch sreen configuration, easy operate

You may interested in:

What we can use an IC CNC Router Grinding Polishing Machine to do?

How to use this S001 Automatic Chipset Grinding Milling Engraving Router Machine




ChinaCNCzone Certificate





ChinaCNCzone Culture
ChinaCNCzone Team


S-001 ChipsetS001 Automatic Chipset Grinding machine Parameter
Operating voltage220v/ 110v
Table size205 * 245mm
Spindle power800W
Effective working size200*200*50mm
Spindle speed24000rpm
Template size190 * 230mm
Reading programSD Card(suggest 1 to 16GB)
Chuck Size1-7mm
Repeatability0.01mm
Tool size1mm end mill
Operating systemFirmware V1.0
Limit switches6 Optoelectronics limit
Precision0.01-0.02mm
Cooling systemwater-cooling system
Stepping motor57-type 3A 1.8°
Drive unitTaiwan ball screw
Sliding unitTaiwan linear guide
Dimensions580*560*750mm
Packing Suize 600*600*800mm
Connect PCNo Need
Grinding and dust collectionSupport
Real-time monitoringSupport
Power outages continued carvingSupport
Tool break continued carvingSupport
Program addingSupport
Dust Cleaner and Microscope
Magnification X12
Microscope LCD 7 inch
Vacuum Cleaner Power180W
Vacuum Cleaner Size350X160X230
Vacuum Cleaner Weight (kg)8.5


This S001 Automatic Chipset Grinding Milling Engraving Router Machine is perfect to grind and remove the CUP, HHD, WIFI, FONT chips in iPhone series mobile phone without any damage in the board.

It is effective machine to help you repair the iPhone 4, 4S, 5, 5C and 5S.

HTB1cFk6KpXXXXc1XpXXq6xXFXXXe





5d481c62-79a8-4bbb-99d0-0a35d4bf27fd

IC chip repair machine
How to use this IC chipset grinder machine?
Step 1. Calibration plane and began roughing
Step 2. Roughing complete
Step 3. Start finishing
Step 4. Finishing complete

3be77549-e663-4551-852f-e5b3c6ae4f0f


Packaging & Delivery

Packaging Details:wooden case

Delivery Detail:1-3workdays after payment is confirmed.
