Developed and designed together by our technicians and overseas engineers of King Saud University from Saudi Arabia.

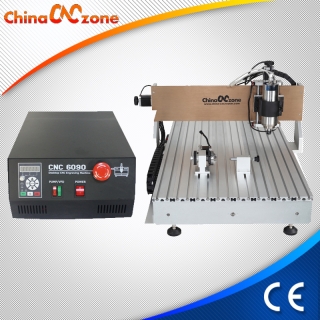

Highlights for this CNC 6090 Router Machine

1. this is the old version with USB controller box, need to contected with computer and notebook compared with our DSP CNC 6090 4 axis

2. Much more powerful, 2200W for selection (also 3 axis model and 4 axis model)

3. Widely used for Milling , Drilling, Carving , Routing & Engraving.

4.  It has a broader base and a thicker screw for larger material working(Compared with CNC 6040 & CNC 3040 series) : X600mm*Y900mm*Z85mm

5. With 4 Axis, can engrave cylinder objects

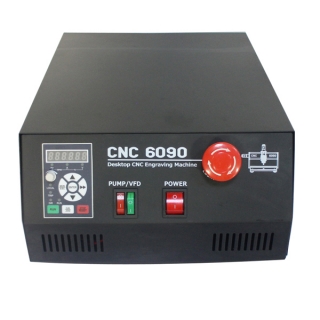

6. With inverter built in controller box

7. It is a hot sale mini cnc router machine

8. Auto-Checking function, easy to set origin of Z axis

9.Limited switches added

10.From reliable & trustable profesional China CNC Router factory.

11.The cnc 4th axis easy to plug and use.

12. Balls crew made it a higher precision

13.Can engrave material such acrylic, brass, wood, aluminum, PCB and so on

14. Fast working speed

15.The acceptable material thickness can high to 150mm, much bigger than general mini CNC machine with max 100mm.


Ball Screw
 USB CNC To 25 Pins transfer cable






ChinaCNCzone Team

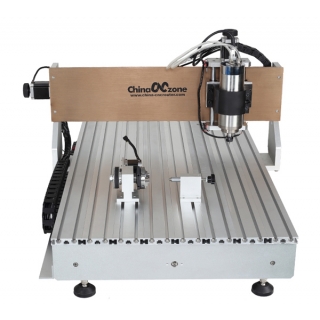

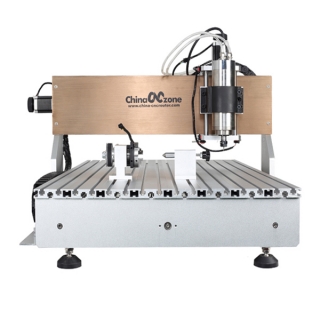

ChinaCNCzone Mini CNC Router




 ChinaCNCzone Certificate

Technical details for this CNC 6090 Router Machine

Shape   dimensionX890mm*Y1250mm*Z670mm
Max.workpiece dimensionX600mm*Y900mm*Z85mm
Work table dimensionX600mm*Y900mm
Frame materialsaluminum   alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let    counterfeiters dwarfs
Acceptable material thickness≤150mm
Driving units1605   ballscrew

1605   ballscrew

1605   ballscrew
Sliding unitsDia.16mm   chrome plate shafts
Dia.20mm chrome plate shafts
Dia.13mm chrome plate shafts
Stepping motor type 57   two-phase 3A 150NNaN
Spindle motorbrand   new 800W/ 1.5KW/ 2.2kw water cooling spindle, 24000RPM
Principal axis colletER11/3.175   mm/6mm
Repeat accuracy<=0.05mm
Spindle precisionradial   beat acuities 0.03 mm
Carving InstructionsG   code/TAB files/nc file/NCC files
Communication interfacethrough   parallel connection with computer
Software environmentWindows   xp
Maximum speed0-4000mm/min
Carving speed0-2500mm/min   (different materials differ)
Control unitToroidal   transformer + PWM power supply module + TB6560 3axis drive board
Computer connectionon   board parallel port
Command codeG   code
Acceptable softwareMach3
ProtectionEmergency   stop button
Operating VoltageAC110V/AC220V
OptionsPacking
CNC 6090 3axis  800w/ 1500W/ 2200w1 Wooden Box,   120kg, 124*88*1600px
CNC 6090   4axis  800w/ 1500W/ 2200w


This CNC 6090 router machine is with larger working area and can be widely used to route diffirent materials and diffirent areas

Materials: Metal, aluminum, wood, plastic, acrylic, jade, brass, PCB, ect.

Working areawoodworking, advertising, mold industry,  stone engraving, artefact, ect.

CNC Router 6040 Can Do

3040 CNC Router for Aluminum

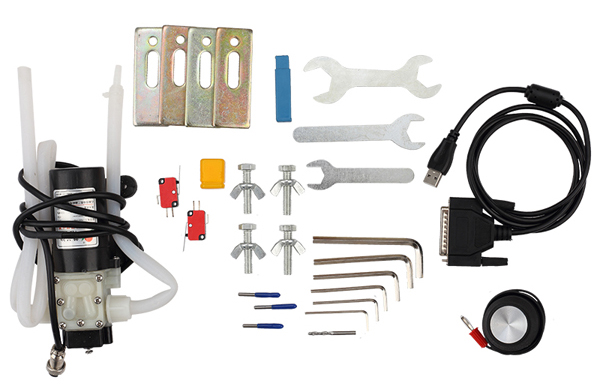

Packing list for this CNC 6090 router machine


1pcs CNC 6090 main body

1pcs controller box with invertor installed in it

1pcs 2.2KW spindle

1pcs parallel cable

1pcs power cable

6pcs engraving bit

1set of clamp tool

Selection available & Packing

Options
CNC 6090   3axis  800w/ 1500W/ 2200w
CNC 6090   4axis  800w/ 1500W/ 2200w

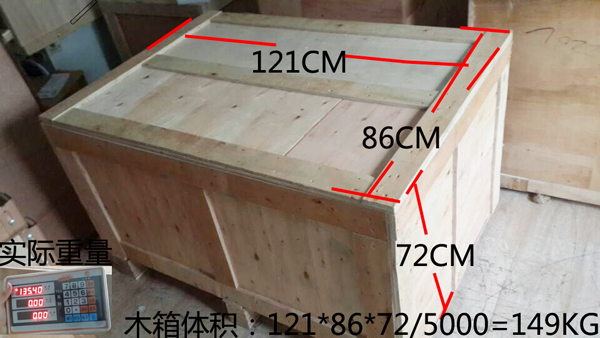

Packing
1 Wooden Box,   150kg, 121 x 86 x 72cm
