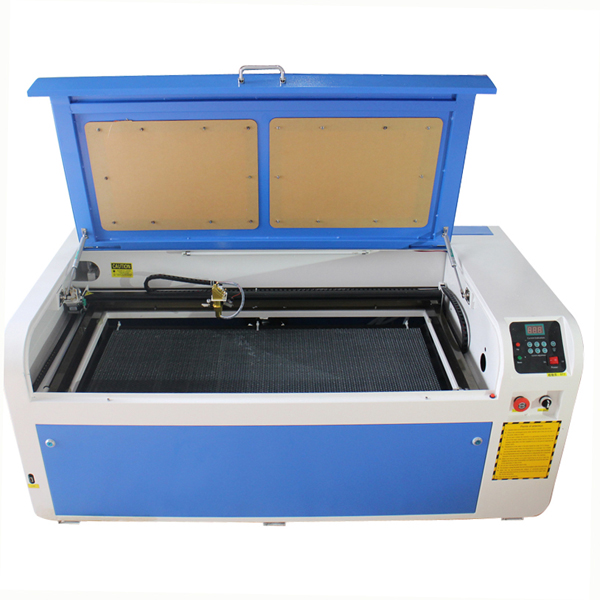

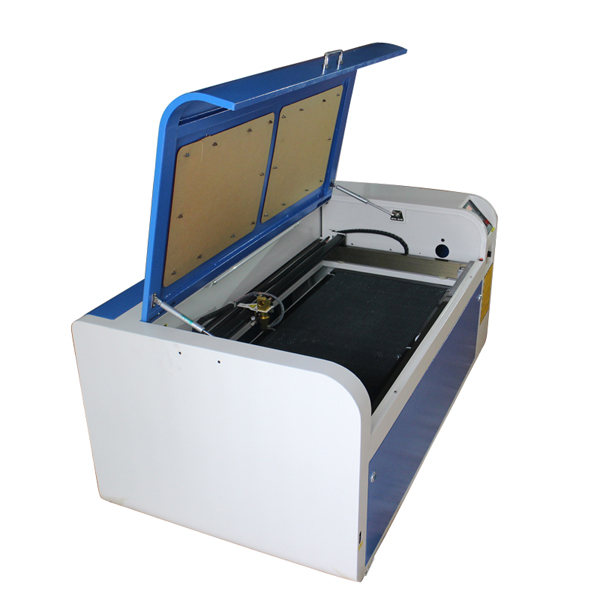

XB-1040 80W Mini Laser Engraver Machine for Sale!

High quality 80W Mini Laser Engraver Machine, Mini Laser Engraver , 80w Laser Engraver for Sale! Factory price. Best aftersales service, ChinaCNCzone

We're here to help:

Easy ways to get the answers you need.

0086-755-83692414
0086-755-89378931
Sunny-scotle

XB-1040 80W Mini Laser Engraver Machine for Sale!

1. Adjustable Speed and Power, Smooth and Precise Engraving and Cutting
2. USB Interface

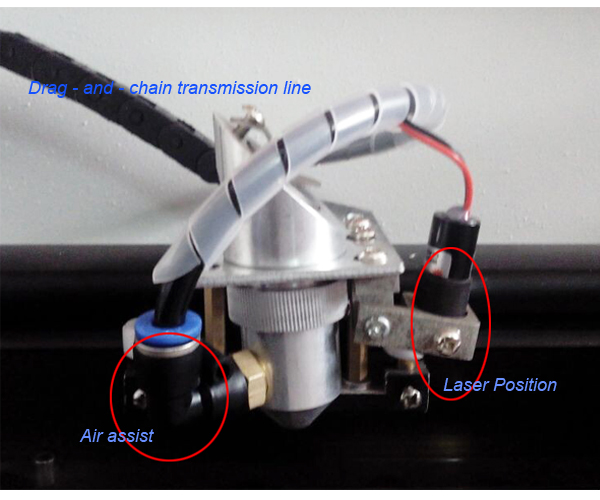

3. Air Assist, Remove heat and combustible gases from the cutting surface.
   18W Air pump, flow can be 38L/Min.
4. Embedded Exhaust Fan, Easier install, Safer transport.
  40W  exhaust fan, flow can be  5.27m³\Min.

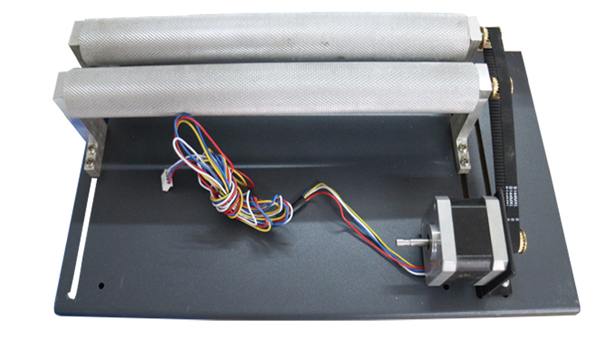

5. Rotary Axis, Engrave any cylindrical object.
6. Cellular platform, Leave no chippings on working area.
7. Intuitive Control Panel, Set Speed, power and more controls directly from the laser.
8. Water Cooling and Protection System with a chiller.
9. Laser position.
10. Emergency Stop Buttom.
11. Larger Size, 400*1000mm working area.
12. Lifting platform is electric control.
13. Drag - and - chain transmission line
14. Laser focal length: 5CM
15. A limit switch let it can only work when the cover is closed

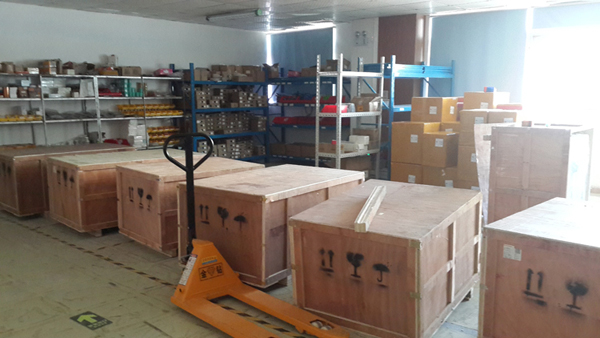

CO2 Laser engraving machine factory





ChinaCNCzone Culture

ChinaCNCzone Team

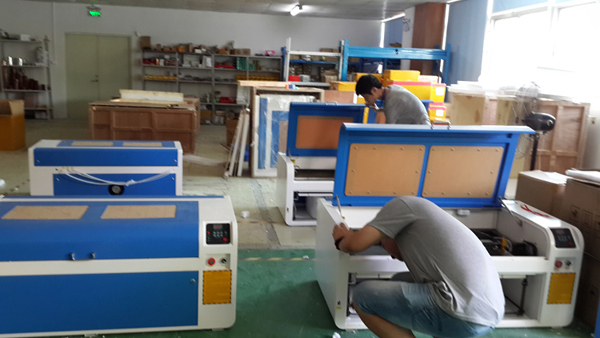

CO2 Laser engraving machine checking

ChinaCNCzone Certificate


 Machine model: 3D laser Engraving Machine XB-1040
Total        power<300W
Laser power80W
Laser typeCO2 laser engraving machine
Power supplyAC        220V/110V
Working area400*1000 mm
Engraving depth0-10        mm (different material differ)
Cutting depth0-10 mm
Engraving speed0-600 mm/s
Cutting speed0-600 mm/s
Lifting platform0- 250 mm  Honeycomb Screen
Locating precision<0.01        mm
Min shaping characterCharacter:        2*2mm, Letter: 1*1mm
Working temperature5℃-45℃
Working humidity5%-95%
Resolution ratio≤2000dpi
Data transfer interfaceUSB        2.0 (offline)
System environmentWindows        XP / Win 7 / Win 8
Cooling Water        Cooling and protection system with chiller
Graphic Format SupportedThe        Files which CorelDraw & WinsealXP can identify
(BMP,JPEG,PLT,CDR,AI,) TIFF,PCX,DIB,TIF
Compatible softwareCorelDraw,WinsealXP
Color separationNO
Sloping engravingNO
ProtectionEmergency        stop buttom and Stop working when water broke
Outside Dimensions140*75*58 cm
PackingWooden        box with foam inside
Package Dimension157*94*78 cm
Package Weight230 kg


XB-1040 80W Mini Laser Engraver Machine for Sale!

for Acrylic, Wood, Glass can be widely used in diffirent areas and can engrave diffirent materials

More detailes please refer to our videos

http://www.chinacnczone.com//laser-engraving-machine_l296_1.html





XB-1040 80W Mini Laser Engraver Machine for Sale!
