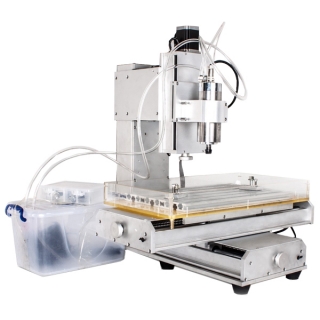

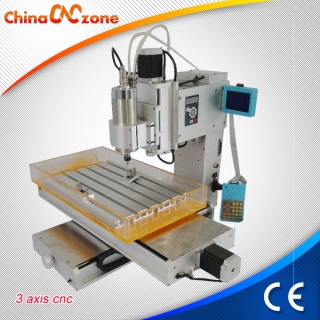

HY-3040 3 Axis Desktop PCB CNC Router Drilling Machine

Buy HY-3040 3 axis desktop PCB CNC router drilling machine from ChinaCNCzone. New Design with High Precision Cross Slippery Platform. We can not just supply 3 Axis Desktop CNC Machine, but more can save your time, your money, your trouble and provide solutions.

We're here to help:

Easy ways to get the answers you need.

0086-755-83692414
Sunny-scotle

Highlights for this 3 Axis Desktop CNC Machine HY-3040

1. Cross slippery platform much more precise than ordinary gantry structure.

2. Heavier base made it more stable, reduce the vibration.

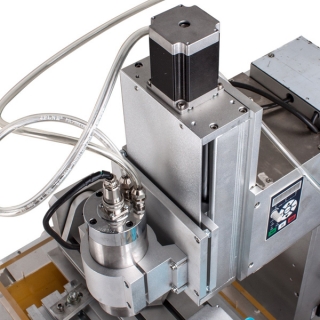

3. 1500w water-cooling spindle.

4. Built in frequency converter and without controller box.

5. Can engrave material which hardness below 45.

6. Vedio supported.

7. CE approval.

Main features for this 3 Axis Desktop CNC Machine HY-3040

1. Integrated high-speed microcomputer intelligent control chip, can be equipped with external LCD monitor with hands, automatic detection of computer controlled automatic shield handle motion control functions, can simultaneously track digital recording of computer data and handle mobile data control

2. The computer keeps track of the path, you can run once the computer processing of the data record-keeping process automatically repeats offline processing operation.

3. Manually move the processing to save recorded track record, manually move the machine data and automatically reprocessed run manually move the path.

4. Manual data input processing path and enter the path to run automatically

5. You can automatically complete the XYZ axis or Z axis of the knife, without complicated computer software operation control.

6. Max 5A stepper motor drive current, eight-speed adjustable.

7. Up to 16 segments, higher accuracy, run more smoothly.

8. Overload over-current over-temperature protection function, automatic semi-flow control, fully protect your computer and peripherals.

9. Bipolar constant current chopper drive motor low-speed non-creeping phenomenon, noise, non-resonant region.

10. Closed optical isolation, dual-stage signal processing, and fully protect your computers and devices.

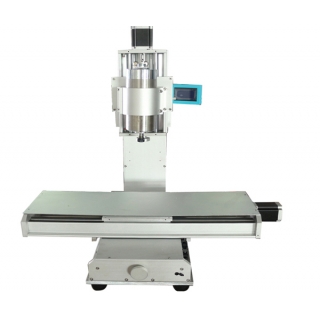

3 Axis CNC PCB Router.jpg


Technical details for this  3 Axis Desktop CNC Machine HY-3040

Model3 Axis CNC Router Machine
Product demention520(H)X660(L)X580(W) mm
Effective work area300x400x(150)mm
Precision ballscrew1605
XYZ rail materialHard chrome shaft
XY rail diameter20mm
Z rail diameter16mm
XYZ axis torque57*78  250 OZ/IN (2.2N/CM)
Repeat positioning accuracy0.01mm
Working precision 0.02mm
Processing speed0-4000 mm/Min
XY table maximum load50kg
Tailgate materialStainless steel
Switching Power SupplyIntegrated 24V 350W
Spindle power800 W water-cooled frequency spindle
Spindle converter 1500w
Input Power220V / 110V power supply
Output CurrentDrive 4.5A (peak 5A)
Drive motor57*78 stepper motors (two-phase 4 wire)
Net Weight50kg
Gross Weight95kg
Outside packing78*66*82 (cm)



This  3 Axis Desktop CNC Machine HY-3040 can be widely to engraving diffirent materials such as wood, acrylic, aluminum, brass, metal, stainless steel and most of with hardness less then 45 degrees.


Safety standard wooden box  for express shipping and sea shipping

PackingWooden box
Outside packing78*66*82 (cm)
Weight90kg
