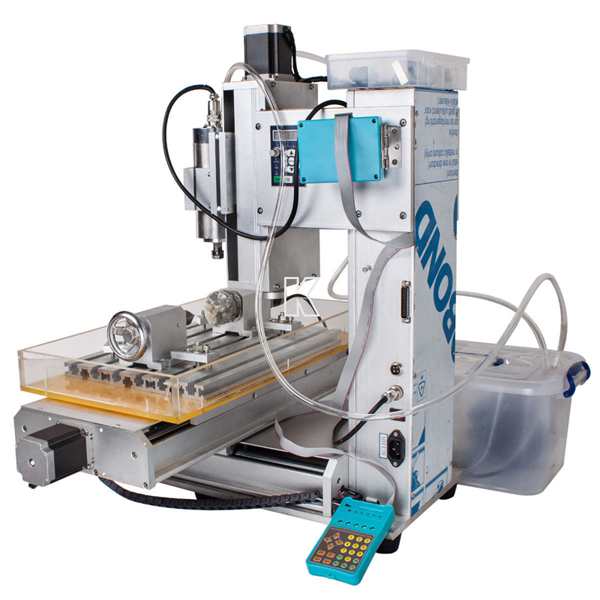

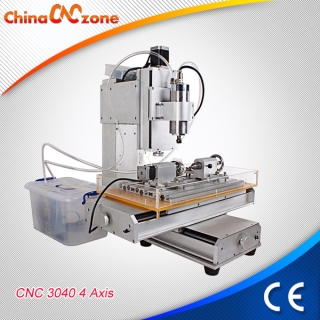

New HY-3040 4 Axis CNC Aluninum Router Machine for Drilling, Milling

Buy HY-3040 4 axis CNC aluninum router machine for drilling, milling from ChinaCNCzone--Professional CNC aluminum router machine manufacturer. Cross sliperry platform and 1500w water cooling spindle made it high precision.

We're here to help:

Easy ways to get the answers you need.

0086-755-83692414
Sunny-scotle

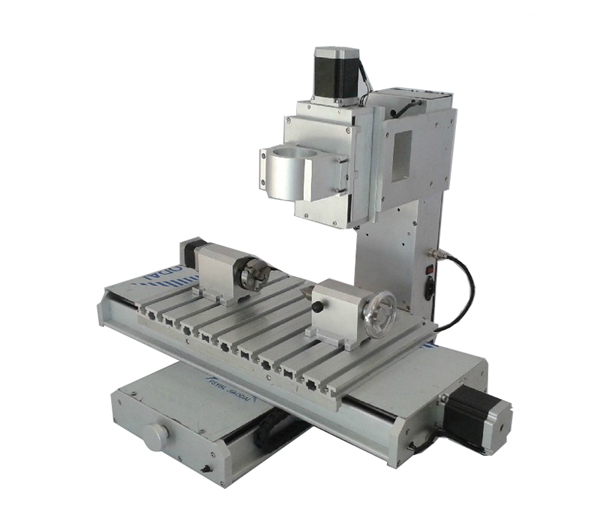

High lights for this 4 Axis CNC Router HY-3040

1. Cross slippery platform much more presice than ordinary gnatry structure.
2. Havier base made it more stable, reduce the vibration.

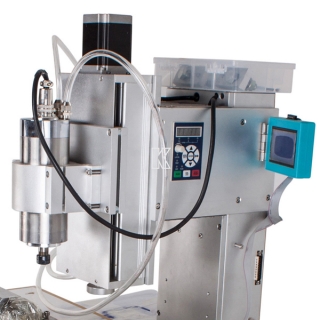

3. 1500w water-cooling spindle.
4. Built in frequencey converter and without controller box.
5. Can engrave material which hardness below 45.
6. Can work with cylinder objects.
7. Vedio supported.
8. CE approval.


Easy operating because:

It can be updated into diy 5 axis CNC router
Integrated high-speed micro computer intelligent control chip.
With external digital LCD monitor and handwheel controller.

The working process can be tracked, recorded in the digital LCD monitor automatically.
Mach 3 software
Built in frequencey converter and without controller box.

Higher precision because:
Cross slippery platform design rather than gantry design.

Aluminum base sheet is heavy which can make sure no vibration when work.
With auto-checking function.
1500w/2200W frequency water-cooled spindle for your selection.
Ball screw.


You can buy this HY-3040 4 Axis CNC Router from us without any worry
CE approved.
Video support.
English manual available.
Mach 3 software send with the machine as a CD.
Can engrave material which hardness below 45.

From reliable & trustable profesional China CNC Router manufacturer.
Original Mach 3 software can be provided.
New USB interface can be added (compatible with Mach 3 software)









ChinaCNCzone Team

ChinaCNCzone Mini CNC Router

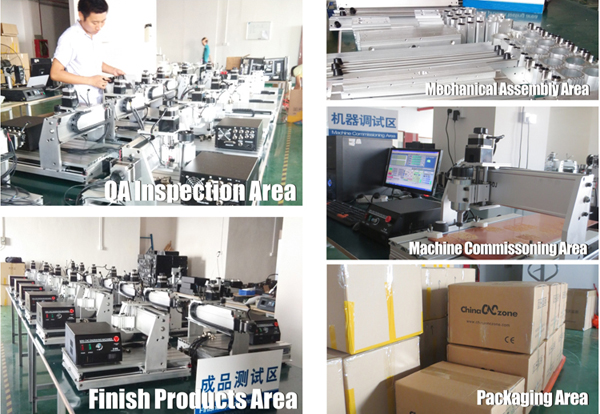

 ChinaCNCzone Certificate


Technical details for this  4 Axis Desktop CNC Machine HY-3040

Model3 Axis CNC Machine
Product demention520(H)X660(L)X580(W) mm
Effective work area300x400x(150)mm
Precision ballscrew1605
XYZ rail materialHard chrome shaft
XY rail diameter20mm
Z rail diameter16mm
XYZ axis torque57*78  250 OZ/IN (2.2N/CM)
Repeat positioning accuracy0.01mm
Working precision 0.02mm
Processing speed0-4000 mm/Min
XY table maximum load50kg
Tailgate materialStainless steel
Switching Power SupplyIntegrated 24V 350W
Spindle power800 W water-cooled frequency spindle
Spindle converter 1500w
Input Power220V / 110V power supply
Output CurrentDrive 4.5A (peak 5A)
Drive motor57*78 stepper motors (two-phase 4 wire)
Net Weight50kg
Gross Weight90kg
Outside packing78*66*82 (cm)

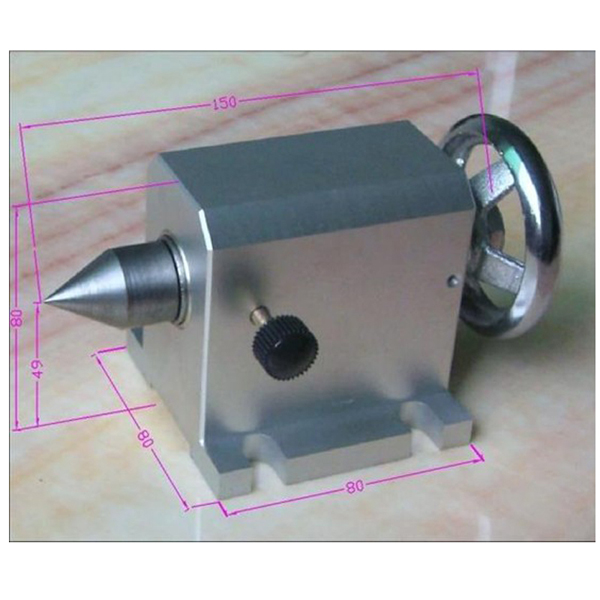

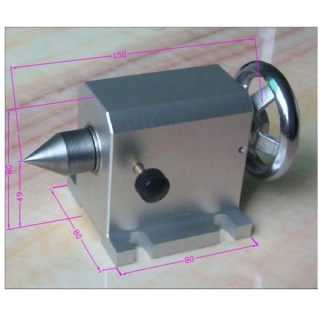

The 4th axis
50 chuck axis stepper42 * 48
Gear ratio1:3

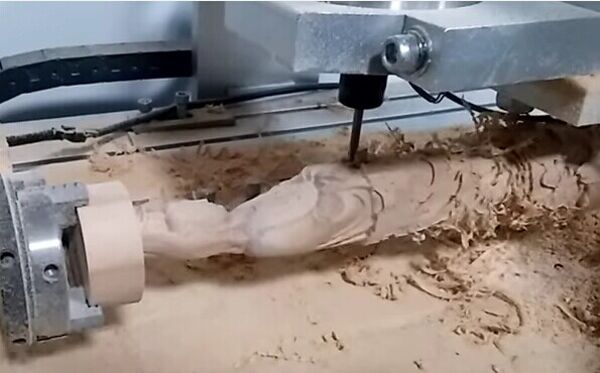

This  4 Axis Desktop CNC Machine HY-3040 can be widely to engraving diffirent materials such as wood, acrylic, aluminum, brass, metal, stainless steel and most of with hardness less then 45 degrees.


Mini CNC HY-3040 use.jpg

Safety standard wooden box  for express shipping and sea shipping

Packing
Wooden box
Outside packing78*66*82 (cm)
Weight95kg

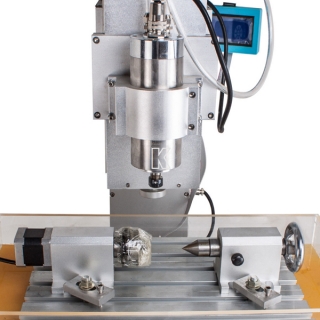

HY3040 4 Axis CNC Router Aluminum.jpgHY-3040 4 axis Aluminum CNC Machine Accessories.jpg
