New Desktop Mini 5 Axis CNC Milling Machine HY 6040 From ChinaCNCzone Factory Manufacturer

New Desktop Mini 5 Axis CNC Milling Machine HY 6040 From ChinaCNCzone Factory Manufacturer

We're here to help:

Easy ways to get the answers you need.

0086-755-83692414
0086-755-89378931
sales02atscotlecom

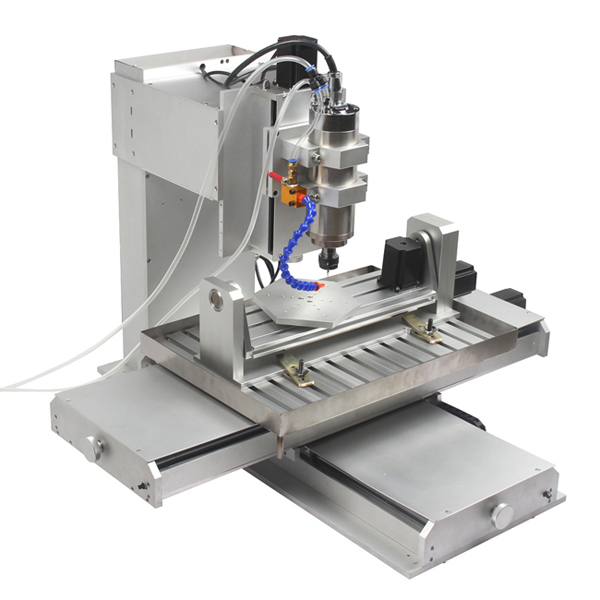

Pictures for this NEW dektop mini 5 axis CNC milling machine HY 6040

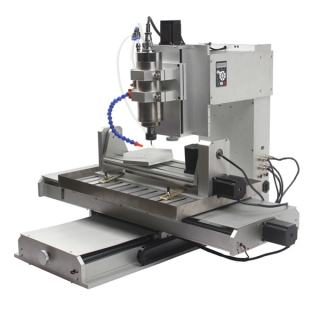

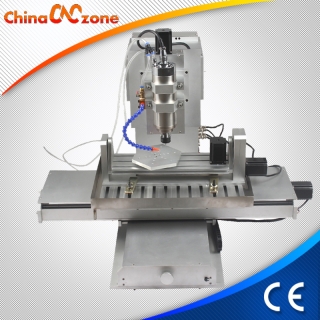

5 axis CNC milling machine.jpg

mini 5 axis cnc Milling machine.jpg

mini 5 axis cnc milling machine.jpg

the 5th axis CNC.jpg

What are new for this New Desktop Mini 5 Axis CNC Milling Machine HY 6040?

First, Each axis is with independent driver,totally 5 independent drivers for 5 axis, bring high accuracy, speedy heat dissipation, longer using life, stable and efficient signal transmission.


Second, Support USB connection, easy to operate.


Third, UG and PowerMill post processing can be free provided(Only compatible with ChinaCNCzone made mini 5 Axis CNC  machine,  if you do it by yourself, it will take about 2-4 days.)


Fourth, Larger step motor for A and B axis,which can hold the A,B axis steady without vibration when machining aluminum and other harder materials.


Fifth, provide test G-code  Free and charge 200USD for special customized G-code design for mini 5 axis CNC router machine.


Sixth, use stainless steel for water tank, with longer service time


What are the main features for this New Desktop Mini 5 Axis CNC Milling Machine HY 6040?

1. Most competitive mini 5 axis CNC milling machine in the market price less 3000USD.

2. From factory with reliable and professional technical support.

3. It can work with 3 axis cnc / 4 axis cnc / 5 axis, just as you like !

4. With external digital LCD monitor and can be controlled by handwheel.(need to buy the handwheel)

5.The working process can be tracked, recorded in the digital LCD monitor automatically.

6. Mach 3 software

7.Built in frequencey converter.

8.Cross slippery platform, high precison.

9.Aluminum base sheet which can reduce vibration when working.

10.With auto-checking function.

11.1500w/2200W water-cooled spindle for your selection.

12.Ball screw.

13.CE approved.

14.Video support.(https://youtu.be/FSuO-cwKeeo)

15.English manual available.

16. Can engrave material which hardness below 45.

17.USB connection

18.Post processing available for this new 5 axis CNC milling machine hy 6040


The parameters for this destop mini 5 axis CNC milling machine

5 axis CNC Milling Machine Parameter

5th axis CNC .jpg

New Desktop Mini 5 Axis CNC Milling Machine HY 6040 parameters

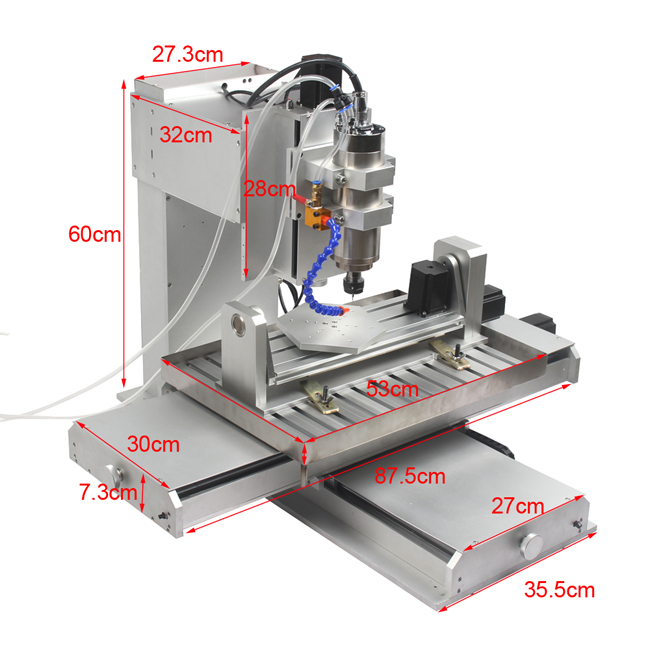

product dimension715(H)*700(L)*610(W) mm
effective work area600*400*150mm
precision ballscrew1605
XYZ rail materialhard chrome shaft
XY rail diameter20mm
Z rail diameter16mm
XYZ axis torque57*78  250 OZ/IN (2.2N/CM)
4th and 5th 57*56
4th and 5th transmission ratio1:6
repeat positioning accuracy0.01mm
working precision 0.02mm
processing speed0-4000 mm/min
A-axis B-axis rotation speed0-180 rpm/min
XY table maximum load50kg
XY+A+B axis table maximum load15kg
tailgate materialstainless steel
switching power supplyintegrated 24V 350W
spindle power1500W/ 2200W water-cooled frequency spindle
input power220V/ 110V power supply
output currentdrive 4.5A (peak 5A)
collet size3/3.175/6mm if need others change into  ER11 first
high efficiency water pump 55W, 46.6L /Min
drive motor57*78 stepper motors (two-phase 4 wire)
engraving materialMetal,Brass, Acrylic, Wood, Aluminum, Stainless Steel
(hardness less then 45 degree)
support computer systemwindowXP
how to connect with computerUSB connection
softwareMACH3 3.04
net weight103kg
packingwooden box
outside packing109*91*56(cm)
weight120kg

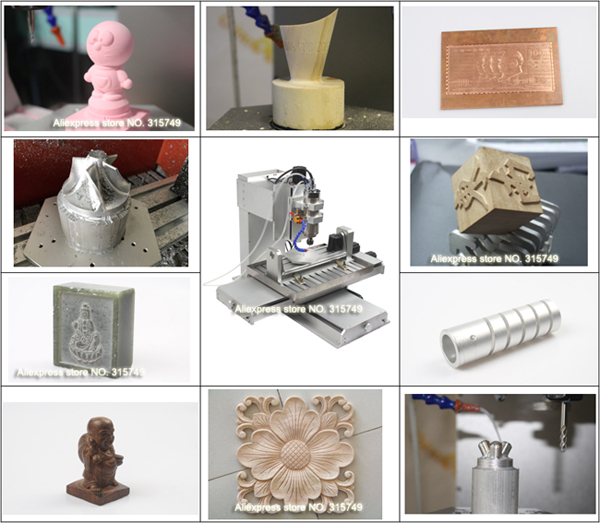

This desktop mini 5 axis CNC milling machine can be widely used for PVC, acrylic, plexiglass, two-color board, engineering plastics, bakelite, solid wood and soft metal materials on the milling and milling, graphite electrode processing, also applies to engraving PCB circuit board, wood Model molds, handicrafts, can be used to drill holes in plastic boxes, aluminum alloy chassis, and panels that do not exceed the limited specifications, and can also perform three-dimensional engraving and drilling and milling of aluminum alloys, copper and other metal materials at low feed rates; It can be used as a simple 3D CNC workbench, such as CNC dispensing, CNC positioning, metal (nameplate) marking and other applications.

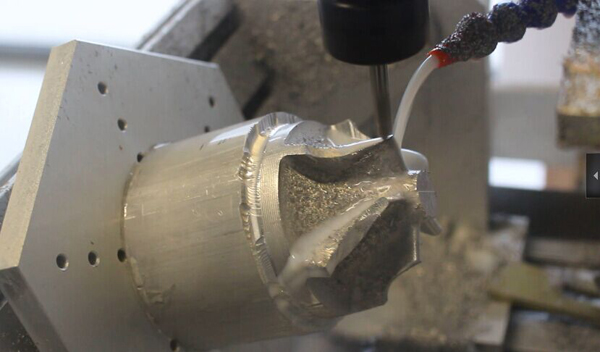

5 axis cnc milling aluminum.jpg

5 axis cnc milling sample.jpg

5 axis cnc milling impeller.jpg

5 axis cnc milling wood.jpg

5 axis CNC router.jpg

5 axis cnc machine sample.jpg

Packing details for this NEW dektop mini 5 axis CNC milling machine HY 6040

packingwooden box

outside packing:109*91*56(cm)

weight:120kg
