Hightlights of Hobby HY-6040 3 Axis Mini CNC Router Machine

1. Cross slippery platform much more precise than ordinary gantry structure.

2. Heavier base made it more stable, reduce the vibration.

3. 1500w water-cooling spindle.

4. Built in frequency converter and without controller box.

5. Can engrave material which hardness below 45.

6. Vedio supported.

7. CE approval.


Main features for Hobby HY-6040 3 Axis Mini CNC Router Machine
1. Integrated high-speed microcomputer intelligent control chip, can be equipped with external LCD monitor with hands, automatic detection of computer controlled automatic shield handle motion control functions, can simultaneously track digital recording of computer data and handle mobile data control

2. The computer keeps track of the path, you can run once the computer processing of the data record-keeping process automatically repeats offline processing operation.

3. Manually move the processing to save recorded track record, manually move the machine data and automatically reprocessed run manually move the path.

4. Manual data input processing path and enter the path to run automatically

5. You can automatically complete the XYZ axis or Z axis of the knife, without complicated computer software operation control.

6. Max 5A stepper motor drive current, eight-speed adjustable.

7. Up to 16 segments, higher accuracy, run more smoothly.

8. Overload over-current over-temperature protection function, automatic semi-flow control, fully protect your computer and peripherals.

9. Bipolar constant current chopper drive motor low-speed non-creeping phenomenon, noise, non-resonant region.

10. Closed optical isolation, dual-stage signal processing, and fully protect your computers and devices.





Affordable CNC router
mini CNC router machine

CNC Router Machine for Sale

Ball Screw

Hobby HY-6040 3 Axis Mini CNC Router Machine Accessories


HY-3040 Gantry CNC Accessories



ChinaCNCzone team always welcome customers from all over the world to visit our factory,

and let us provide the best diffirent models mini cnc machine, hobby cnc router, desktop cnc router

for users together.
China CNC Router Factory


ChinaCNCzone Mini CNC Router
ChinaCNCzone Certificate





ChinaCNCzone Culture


ChinaCNCzone Team

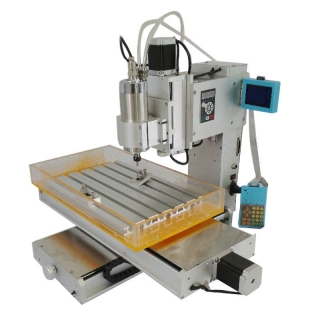

Hobby HY-6040 3 Axis Mini CNC Router Machine
product dimension

 715(H)*700(L)*610(W) mm

effective work area600*400*150mm
precision ballscrew1605
XYZ rail materialhard chrome shaft
XY rail diameter20mm
Z rail diameter16mm
XYZ axis torque57*78  250 OZ/IN (2.2N/CM)
repeat positioning accuracy0.01mm
working precision 0.02mm
processing speed0-4000 mm/min
XY table maximum load50kg
tailgate materialstainless steel
switching power supplyintegrated 24V 350W
spindle power1500W/ 2200W water-cooled frequency spindle
input power220V/ 110V power supply
output currentdrive 4.5A (peak 5A)
collet size3/3.175/6mm if need others change into  ER11 first
high efficiency water pump 55W, 46.6L /Min
drive motor57*78 stepper motors (two-phase 4 wire)
engraving materialMetal,Brass, Acrylic, Wood, Aluminum, Stainless Steel
(hardness less then 45 degree)
support computer systemwindowXP/ window 7
how to connect with computer25 pin parallel port/USB interface for selection
softwareMACH3 3.04
net weight50kg
packingwooden box
outside packing78*66*82 (cm)
weight96kg

https://www.chinacnczone.com/

Hobby HY-6040 3 Axis Mini CNC Router Machine can be widely used to engrave wood, acrylic, brass, alumimun,PVC, PCB and so on.
