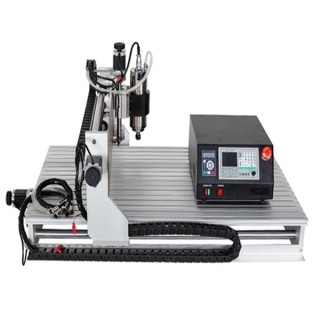

New Product! CNC 6090 Router 4 Axis With DSP Controller Box.

This the the most fastest model! Newest DSP controller box, easy operate! Work independently . SD card slot interface. 2.2KG water-cooled spindle, powerfu! 4 Axis and 3 Axis for selection.

We're here to help:

Easy ways to get the answers you need.

0086-755-83692414
0086-755-89378931
skype


ChinaCNCzone new product CNC 6090 mini CNC router released!

Developed and designed together by our technicians and overseas engineers of King Saud University from Saudi Arabia.

The acceptable material thickness can high to 150mm, much bigger than general mini CNC machine with max 100mm.

This the the most fastest model!

Newest DSP controller box, easy operate!

Work independently .

SD card slot interface.

2.2KG water-cooled spindle, powerfu!

4 Axis and 3 Axis for selection.

What are the advantages for the New DSP Control System ?

    Independent DSP system, work without a computer.
    Insert TF memory card, automatic reading and processing files.
    By operate the control box, you can program and carving directly.
    G-code files can be directly edited, delete, insert, and so on

What are the main features for this CNC 6090 Router machine?

    USB interface
    Balls crew made it a higher precision
    Limited switches added
    2200W water cooling spindle
    4th axis can be Plug-and play, no need to replace controller box.
    Auto-Checking function, easy to set origin of Z axis
    Built-in frequency converter in control box
    Compared to smaller machines, it has a broad base and a thicker screw

    New, work faster compared with the common ones in the market

Why buy from ChinaCNCzone?

    Got CE approved.
    From reliable & trustable profesional China CNC router manufacturer.
    Youtube cnc machine video support.
    Technical team always available.
    English manual available.











ChinaCNCzone Team


ChinaCNCzone Mini CNC Router




 ChinaCNCzone Certificate



Shape   dimensionX890mm*Y1250mm*Z670mm
Max.workpiece dimensionX600mm*Y900mm*Z150mm
Frame materialsaluminum   alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let    counterfeiters dwarfs
Acceptable material thickness≤150mm
Driving unitsX:    1605 ball screw
Y:  2005 ball screw
Z:  1605 ball screw
Sliding unitsX:    Dia.30mm chrome plate shafts
Y:  Dia.30mm chrome plate shafts
Z:  Dia.16mm chrome plate shafts
Stepping motor type57-76   two-phase 3A 150NNaN
Spindle motorbrand   new 2.2kw water cooling spindle, 24000RPM
Spindle colletER16-A,   3-10 mm shank diameter tool
Repeat accuracy<=0.05mm
Spindle precisionRadial   beat acuities 0.03 mm
Carving InstructionsG   code/ TAB files/ nc file/ NCC files
Maximum speed4000mm/min
Carving speed0-2500mm/min   (different materials differ)
Command codeG   code
ProtectionEmergency   stop button
Operating VoltageAC110V/AC220V



How to use our CNC 6090 router machine, please kindly refer to below Youtube link:

https://www.chinacnczone.com//cnc-6090-router-videos_l363_1.html




Standard wooden box

Packing Dimensions : 121x86x72cm

Net weight: 136KG

Packing weight: 150KG (Shipping weight)

Our CNC 6090 mini router with below accessories.
