ChinaCNCzone Powerful HY-6040 4 Axis Small CNC Router Machine for Wood, Acrylic, Craftman, Hobby and Workshop (1500W/2200W)

buy ChinaCNCzone Powerful HY-6040 4 Axis Small CNC Router Machine for Wood, Acrylic, Craftman, Hobby and Workshop (1500W/2200W)

We're here to help:

Easy ways to get the answers you need.

0086-755-83692414
0086-755-89378931
Sunny-scotle

High lights for HY-6040 4 Axis Small CNC Router Machine

1. Cross slippery platform much more presice than ordinary gnatry structure.
2. Havier base made it more stable, reduce the vibration.
3. 1500w/2200W water-cooling spindle.
4. Built in frequencey converter and without controller box.
5. Can engrave material which hardness below 45.
6. Can work with cylinder objects.
7. Vedio supported.
8. CE approval.

Easy operating because:

It can be updated into mini 5 axis CNC router
Integrated high-speed micro computer intelligent control chip.
With external digital LCD monitor and handwheel controller.

The working process can be tracked, recorded in the digital LCD monitor automatically.
Mach 3 software
Built in frequencey converter and without controller box.

Higher precision because:
Cross slippery platform design rather than gantry design.

Aluminum base sheet is heavy which can make sure no vibration when work.
With auto-checking function.
1500w/2200W frequency water-cooled spindle for your selection.
Ball screw.


You can buy this HY-6040 4 Axis Small CNC Router Machine from us without any worry
CE approved.
Video support.
English manual available.
Mach 3 software send with the machine as a CD.
Can engrave material which hardness below 45.

From reliable & trustable profesional China CNC Router manufacturer.
Original Mach 3 software can be provided.
New USB interface can be added (compatible with Mach 3 software)

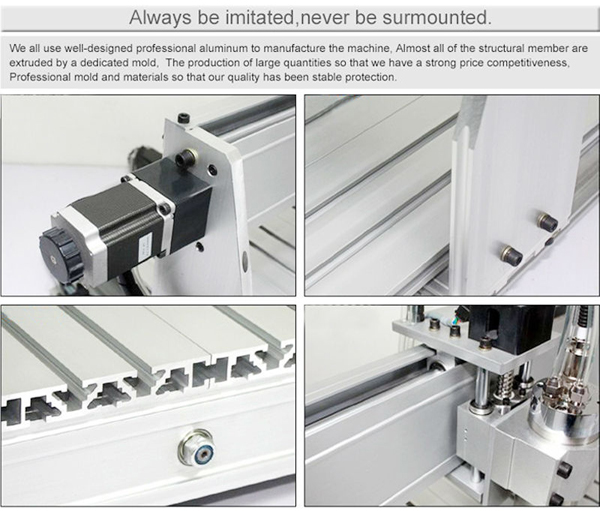

Small CNC Machine

Small CNC Machine

Small CNC Machine

Chine Aluninum  HY6040 the 4th Axis machineWorking CNC 4Axis router machine







ChinaCNCzone Team



ChinaCNCzone Mini CNC Router




 ChinaCNCzone Certificate


Technical details for this  HY-6040 4 Axis Small CNC Router Machine

Model4 Axis CNC Machine
Product demention715(H)X770(L)X610(W) mm
Effective work area600x400x(150)mm
Precision ballscrew1605
XYZ rail materialHard chrome shaft
XY rail diameter20mm
Z rail diameter16mm
XYZ axis torque57*78  250 OZ/IN (2.2N/CM)
Repeat positioning accuracy0.01mm
Working precision 0.02mm
Processing speed0-4000 mm/Min
XY table maximum load50kg
Tailgate materialStainless steel
Switching Power SupplyIntegrated 24V 350W
Spindle power800 W water-cooled frequency spindle
Spindle converter 1500w
Input Power220V / 110V power supply
Output CurrentDrive 4.5A (peak 5A)
Drive motor57*78 stepper motors (two-phase 4 wire)
Net Weight50kg
Gross Weight90kg
Outside packing78*66*82 (cm)


The 4th axis
50 chuck axis stepper42 * 48
Gear ratio1:3


This  HY-6040 4 Axis Small CNC Router Machine can be widely to engraving diffirent materials such as wood, acrylic, aluminum, brass, metal, stainless steel and most of with hardness less then 45 degrees.

Mini CNC HY-3040 use.jpg


Safety standard wooden box  for express shipping and sea shipping

Packing
Wooden box
Outside packing110*90*43 (cm)
Weight95kg
