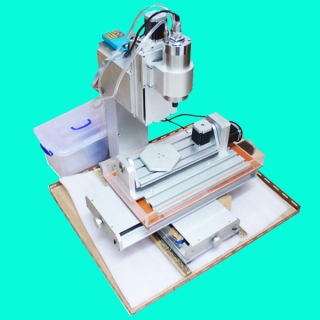

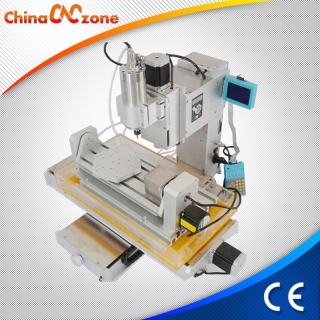

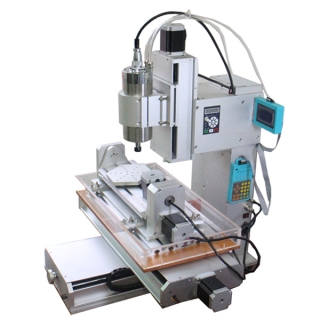

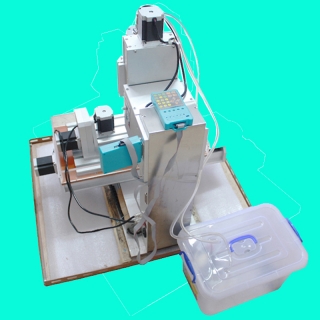

HY-3040 China Desktop Mini 5 Axis CNC Router Machine for Sale--ChinaCNCzone

Latest HY-3040 5 Axis CNC Machine for sale. Price competitve from factory. Can be widely used.

We're here to help:

Easy ways to get the answers you need.

0086-755-83692414
Sunny-scotle

Now, this old version already stop production, ChinaCNCzone released the new HY 3040 5 axis cnc router machine with better configuration, better accuracy and better efficiency.

More details, please click below link:

https://www.chinacnczone.com/en/new-5-axis-cnc-router-machine-hy-3040-from-chinacnczone-price-less-than-3000usd_l292_p212.html



Main feature for HY-3040 Small DIY China 5 Axis CNC Machine

1. Integrated high-speed microcomputer intelligent control chip, can be equipped with external LCD monitor with hands, automatic detection of computer controlled automatic shield handle motion control functions, can simultaneously track digital recording of computer data and handle mobile data control.

2. The computer keeps track of the path, you can run once the computer processing of the data record-keeping process automatically repeats offline processing operation.

3.  Manually move the processing to save recorded track record, manually move the machine data and automatically reprocessed run manually move the path.

4.Manual data input processing path and enter the path to run automatically.

5. You can automatically complete the XYZ axis or Z axis of the knife, without complicated computer software operation control.

6. Max 5A stepper motor drive current, eight-speed adjustable.

7. Up to 16 segments, higher accuracy, run more smoothly.

8. Overload over-current over-temperature protection function, automatic semi-flow control, fully protect your computer and peripherals.

9. Bipolar constant current chopper drive motor low-speed non-creeping phenomenon, noise, non-resonant region.

10. Closed optical isolation, dual-stage signal processing, and fully protect your computers and devices.





Mini 5 axis cnc machining Videos

Model5 Axis CNC Machine
Product demention520(H)X660(L)X580(W) mm
Effective work area300x400x(150)mm
5th work area140mm ,can engrave 5 diffirent sides
High Precision ballscrew1605
XYZ rail materialHard chrome shaft
XY rail diameter20mm
Z rail diameter16mm
XYZ axis torque57*78  250 OZ/IN (2.2N/CM)
4th and 5th torque57*56
4th and 5th transmission ratio1:6
Repeat positioning accuracy0.01mm
Working precision 0.02mm
Processing speed0-4000 mm/Min
A-axis B-axis rotation speed0-180 rpm/min
XY table maximum load50kg
XY+A+B axis table maximum load15kg
Tailgate materialStainless steel
Switching Power SupplyIntegrated 24V 350W
Spindle power800 W water-cooled frequency spindle
Spindle converter 1500w
Input Power220V / 110V power supply
Output CurrentDrive 4.5A (peak 5A)
Drive motor57*78 stepper motors (two-phase 4 wire)
Stepper Motor78*3.5A
Collet size3/3.175/6mm if need others change into  ER11 first
High efficiency Water Pump 55W,46.6L /Min
Weight90kg
Engraving materialMetal,Brass, Acrylic, Wood, Aluminum, Stainless Steel
(hardness less then 45 degree)
Support computer systemwindowXP/window 7
SoftwareMACH3 3.04
4 Axis parameter setting26.666/1000.2/300/5/5
How to connect with computer25 pin parallel port
PackingWooden box
Outside packing78*66*82 (cm)


This HY-3040 Small DIY 5 Axis CNC Router Machine can be widely to engraving diffirent materials such as wood, acrylic, aluminum, brass, metal, stainless steel and most of with hardness less then 45 degrees.



Safety standard wooden box  for express shipping and sea shipping

PackingWooden box
Outside packing78*66*82 (cm)
Weight90kg
