Latest CNC 6090 Hobby Desktop CNC Machine with Water Cooling System

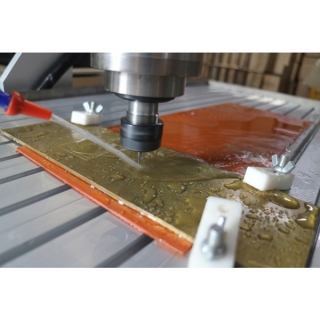

Why add the Sink cooling system ?
It can cool the spindle and protect the machine.

Avoid the spindle burn out.when you

Can engrave the high hardness or metal

It can improve the efficiency and accuracy of the machine.

water sink cool system


What are the main features for this new CNC 6090 Hobby Desktop mini cnc router

1.The acceptable material thickness and effective working area of Z axis is 150mm.
2. New added water cooling system, enlarge the working fields and prolong the working life.
3. With 1500W and 2200W Spindle selection
4. It can be updated into 4 axis CNC router easily, you just need to buy the 4th axis, then plug and use.
5. USB interface
6. English manual available.
7.Can engrave material such acrylic, brass, wood, aluminum, PCB and so on.
8.Balls crew made it a higher precision.
9.Auto-Checking function, easy to set origin of Z axis
10.With built-in frequency converter in control box
11.It has a broaded base and a thicker screw for larger material working.
12.Limited switches added.
13.From reliable & trustable profesional China CNC Router manufacturer.

14.It has three different types of controllers according to users' need.(USB controller box for USB CNC software and parallel port for mach3 cnc software, DSP controller box no need use mach3 software, and mach3 USB controller box for mach3 software.)

What are the advantages of the USB controller box?
1.with the USB CNC cable, you can use the usb CNC software
2.with the parallel port, you can use the mach3 software
3.High performance, lower cost.
USB CNC Controller box
USB CNC cable

What are the advantages of the DSP controller box?
1. with the DSP controller box with independent DSP system,the mini CNC router can work without a computer.
2. After copy the G-code to your SD card, you can insert TF memory card to the TF card slot on the DSP controller box, and then run the G-code directly,
3. G-code files can be directly edited, delete, insert through the DSP controller system.
4.Very easy to operate and suitable for factory application.
5. Select the mini CNC router with DSP controller system, NO need to to use the mach3 software any more.
DSP CNC Controller Box
What are the advantages of the Mach3 USB controller box?
1.For the users who familiar with mach3 software, select this controller, you can use the mach3 software easily through the USB interface directly.
2.High performance, time saving and cost a little higher.
Mach3 USB CNC controller box

What is the dimension for this CNC 6090 Desktop Hobby CNC machine 3 Axis?

CNC 6090.jpg



usb CNC 6090.jpg


CNC 6090

CNC 6090


CNC 6090

CNC 6090 water cooling


CNC 6090 working

CNC 6090


6090 CNC Router DSP Controller Interface

Ball Screw



CNC 6090 Hobby Desktop CNC Machine Parameters
Effective working travel600(X)mm*900(Y)mm*150(Z)mm
Shape dimension890*1250*670mm
Frame materialsAluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let counterfeiters dwarfs
Axis3 Axis and 4 Axis version
Acceptable material thickness≤150mm
Driving unitsX,Z SFUR1605-DFC7-P0  ball screw,  Y SFUR2005-DFC7-P0 ball screw
Sliding units X AxisDia.30mm chrome plate shafts
Sliding units Y AxisDia.30mm chrome plate shafts
Sliding units Z axisDia.16mm chrome plate shafts
Stepping motor type 57 two-phase 3A 150N.cm
4 Axis size and precision220(L)*116(W)*105(H)mm, 9KG Transmission ratio: 1:3,  0.6 degree/step, K11
4Axis maximum clamping diameterCenter height 65mm, 3 Jaw 80mm Chuck, Maximum clamping 125mm ,Tailstock maximum expansion length 50mm ,Maximum clamping weight 30kg
Spindle motorChanglong GDZ80-2.2, 24000RPM, 1500/2200W
Principal axis colletER20  1-13mm
Repeat accuracy0.05mm
Spindle precisionradial beat acuities 0.03 mm
Maximum speed0-4000mm/min
Control unitE100S2R2B + JMC542 drive board+1635A 4th Axis drive board + DSP Controller
Computer connectionDSP control No need connect computer
Command codeG code, or any MACH3 support format file
ProtectionEmergency stop button
Operating VoltageAC220V/110V
AccessoriesPump, Auto checking tool , cutter, banner and so on.
WarrantyTwo Year
Package sizeOne wooden box package , 121*86*82cm
Gross weight156KG


This new CNC 6090 Hobby Desktop CNC Machine can be widely used to engrave wood, acrylic, brass, alumimun,PVC, PCB and so on.

HY-3040 mini desktop 5 Axis CNC machine can do


cnc router aluminum.jpg

CNC 6090 working


Standard wooden box

Packing Dimensions : 121x86x72cm

Net weight: 136KG

Packing weight: 150KG (Shipping weight)

Latest CNC 6090 Hobby Desktop CNC Machine with below accessories.

CNC 6090 Packing
