ChinaCNCzone HY-6040 Small Desktop DIY 5 Axis CNC Machine for Milling Engraving Wood, Brass, Acrylic

ChinaCNCzone HY-6040 Small Desktop DIY 5 Axis CNC Machine for Milling Engraving Wood, Brass, Acrylic ChinaCNCzone team always welcome customers from all over the world to visit our factory,and let us provide the best diffirent models mini CNC routers

We're here to help:

Easy ways to get the answers you need.

0086-755-83692414
0086-755-89378931
Sunny-scotle

This HY-6040 Small Desktop DIY 5 Axis CNC Machine is our latest  Cross slide design with higher precision.
It is the the updation of HY-3040 mini 5 axis CNC router machine with much larger working area.

Main featuresas below:
Easy operating because:

Integrated high-speed micro computer intelligent control chip.
With external digital LCD monitor and handwheel controller.
The working process can be tracked, recorded in the digital LCD monitor automatically.
Mach 3 software
Built in frequencey converter and without controller box

Higher precision because:

Cross slippery platform design rather than gantry design.
Aluminum base sheet is heavy which can make sure no vibration when work.
With auto-checking function.
1500w/2200W frequency water-cooled spindle for your selection.
Ball screw.

You can buy this HY-6040 Small Desktop DIY 5 Axis CNC Machine from us without any worry
CE approved.
Video support.
English manual available.

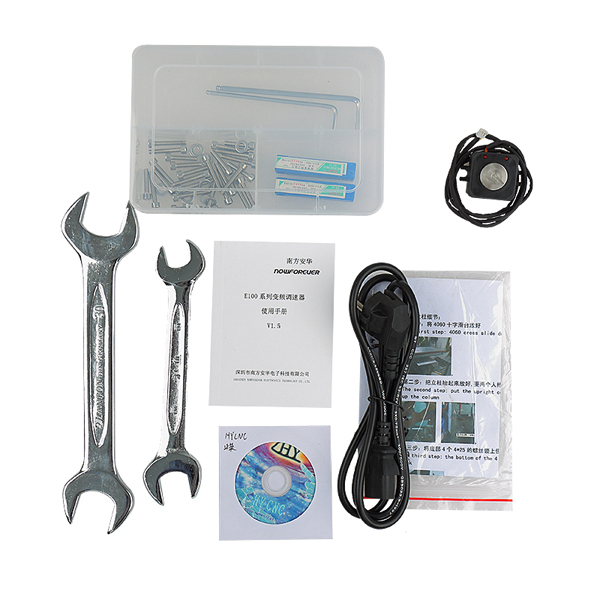

Mach 3 software send with the machine as a CD.
Can rock material well 45 degree.
From reliable & trustable profesional hobby CNC Router manufacturer.

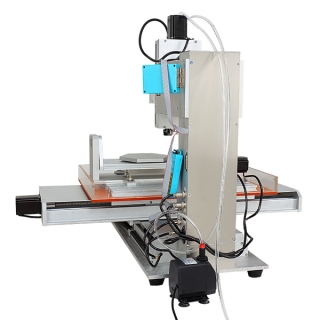

Note:We also have HY-6040 version with cooling pipe system, during working, it can cool and protect the 5 axis CNC machine.

The video as below link: https://youtu.be/SY4yCqYorbw


Ball Screw

ChinaCNCzone team always welcome customers from all over the world to visit our factory,

and let us provide the best diffirent models mini CNC routers for users together.
China CNC Router Factory




ChinaCNCzone Culture
ChinaCNCzone Team


ChinaCNCzone Mini CNC Router

ChinaCNCzone Certificate

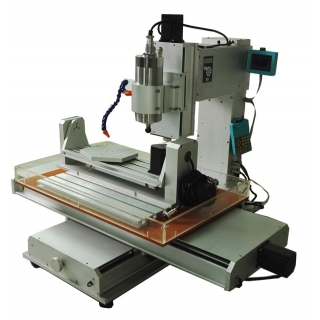

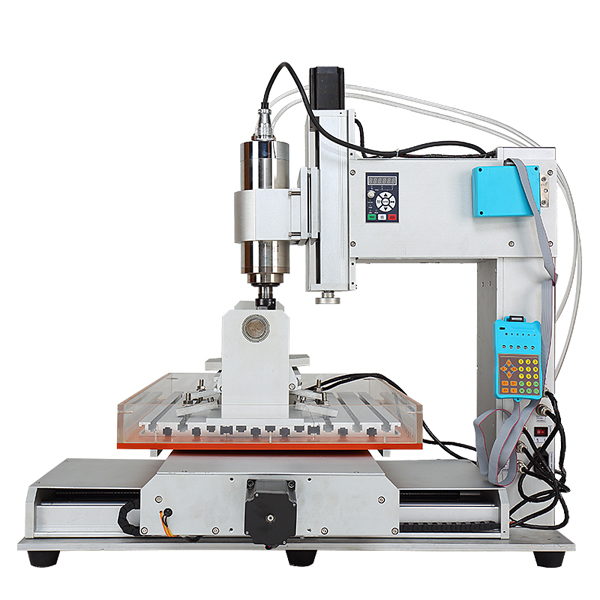

HY-6040 Small Desktop DIY 5 Axis CNC Machine
product dimension715(H)*700(L)*610(W) mm
effective work area600*400*150mm
precision ballscrew1605
XYZ rail materialhard chrome shaft
XY rail diameter20mm
Z rail diameter16mm
XYZ axis torque57*78  250 OZ/IN (2.2N/CM)
4th and 5th 57*56
4th and 5th transmission ratio1:6
repeat positioning accuracy0.01mm
working precision 0.02mm
processing speed0-4000 mm/min
A-axis B-axis rotation speed0-180 rpm/min
XY table maximum load50kg
XY+A+B axis table maximum load15kg
tailgate materialstainless steel
switching power supplyintegrated 24V 350W
spindle power1500W/ 2200W water-cooled frequency spindle
input power220V/ 110V power supply
output currentdrive 4.5A (peak 5A)
collet size3/3.175/6mm if need others change into  ER11 first
high efficiency water pump 55W, 46.6L /Min
drive motor57*78 stepper motors (two-phase 4 wire)
engraving materialMetal,Brass, Acrylic, Wood, Aluminum, Stainless Steel
(hardness less then 45 degree)
support computer systemwindowXP
how to connect with computer25 pin parallel port
softwareMACH3 3.04

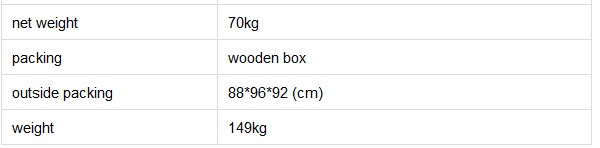

net weight70kg
packingwooden box
outside packing88*96*92 (cm)
weight149kg


This HY-6040 Small Desktop DIY 5 Axis CNC Machine can be widely used to engrave wood, acrylic,

brass, alumimun,PVC, PCB and so on.

HY-3040 mini desktop 5 Axis CNC machine can do

mini cnc 5 axis live demo
