ChinaCNCzone S005 Fiber Laser Engraver Marker Machine Equipment System for Metal

Have 10W/20W/30W/50W for your selection

Work range 110x110mm  150x150mm  200x200mm 220x220mm  300x300mm for selection

Desktop version

price Most competive with high configuration.

Compared with our mini CNC router such as CNC 6040, CNC 6090, this Portable Fiber Laser Marking Machine is specially designed for metal and non -metal engraving

Main features for this S005 Fiber Laser Engraver Machine Equipment System

1.Optical Fiber Laser, environment friendly, easy maintenance.
2.Life of the laser can be up to 100000 hours.
3.Desktop version

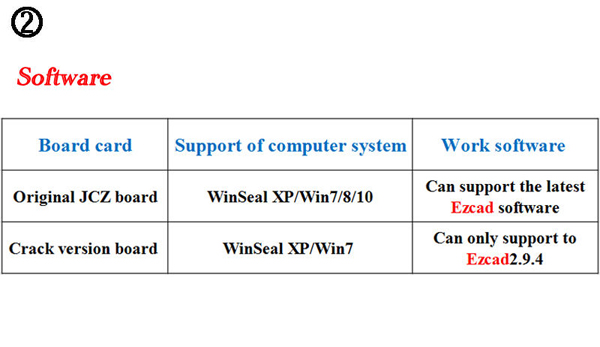

4.Easy operation software, compatible with PHOTOSHOP, CORELDRAW, AUTOCAD
5.Runs without consumable spare parts, no need maintenance, great for continuous working.

6.The galvanometer scanning system is made of optical scanner and servo control of two parts, the whole system adopts new technology, new material, new design and manufacturing.
7.The smallest volume, suitable for harsh environment, friendly interface, easy operation.
8.Adopts the high quality, high energy, high stability fiber laser source, prime precision optical galvanometer assembly and the industry’s top software.
9.Compact, lightweight, simple interface, flexible and adjustable processing direction.
10.The master switch, red light switch and galvanometer switch.
11. High precision scale.

This S005 Fiber Laser Engraver Marker Machine Equipment System mainly consists of four parts: fiber laser, galvanometer scanning system, computer control system and the worktable

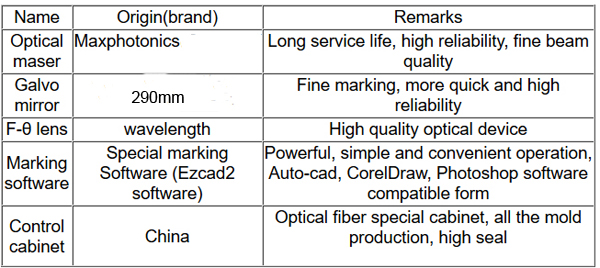

Fiber laser parameters

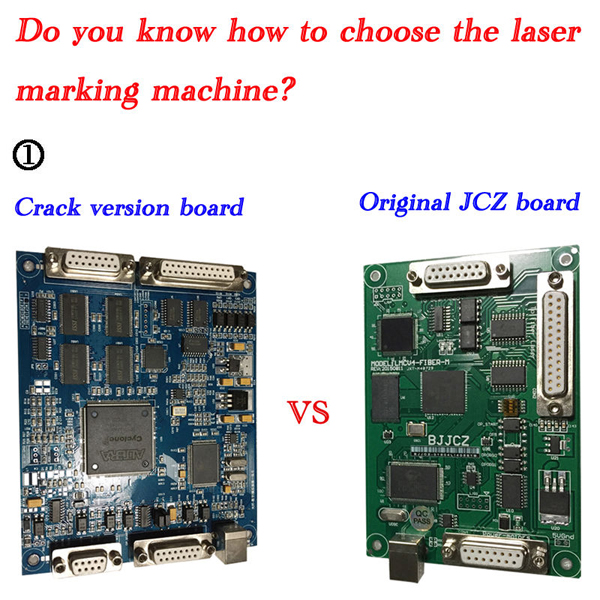

fiber laser marking machine driver board

Fiber laser marking machine support system

More pictures for this Updated S005 10W/20W/30W/50W Fiber Laser Engraver Marker Machine Equipment System for Metal

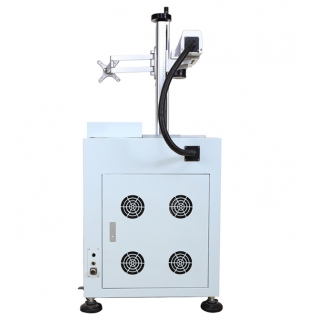

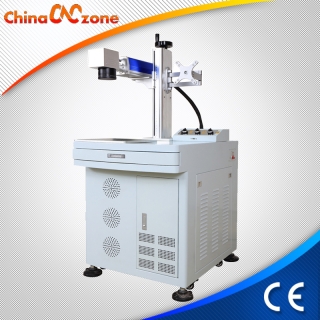

Fiber Laser Engraver

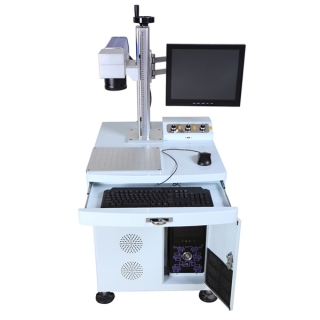

fiber laser engraver

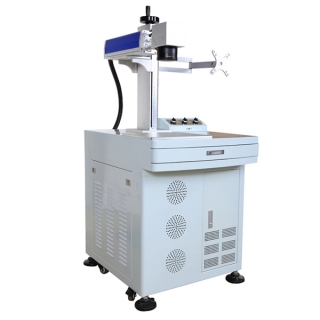

Desktop fiber laser marker

Desktop fiber laser engraver marker

Desktop fiber laser engraver marker

Desktop fiber laser engraver Equipment

Desktop fiber laser engraver system


Desktop fiber laser engraver marker details

Desktop fiber laser marker system

Desktop fiber laser engraver Equipment

Desktop fiber laser engraver details

Desktop fiber laser engraver Equipment details


More details for this S005 10W/20W/30W/50W Fiber Laser Engraver Marker Machine Equipment System

desktop fiber laser engraver marking machine

Desktop fiber laser engraver Equipment


Voltage :110V/220V


Fiber Laser Source:Maxphotonics (RAYCUS /IPG laser optional)

Output Power:10W/20W/30W/50W for selection

Laser wavelength:1064nm

Modulation frequency range:20-100kHz

Speed:0-8000mm/s

Precision:±0.003mm

Minimum line width:0.015mm

Minimum height of characters:0.15mm

Cooling way:Air cooling

Marking range:110x110mm  150x150mm  200x200mm 220X220mm 300X300mm

Laser power supply:0.5KW,220V/50Hz, 110V/60HZ

Rotary device:Optional

Weight:80KGS


Outside packing:100*75*158cm


Gross weight: 115KG

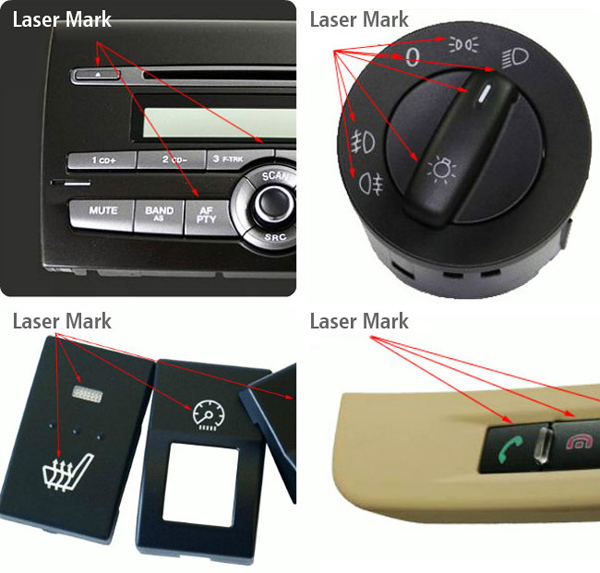

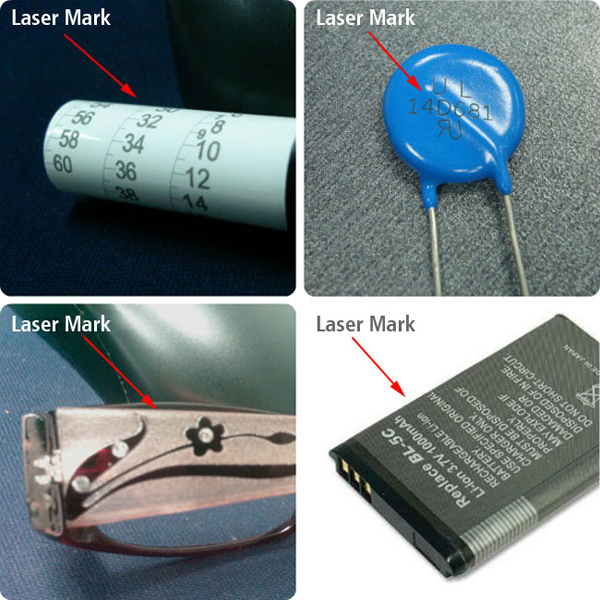

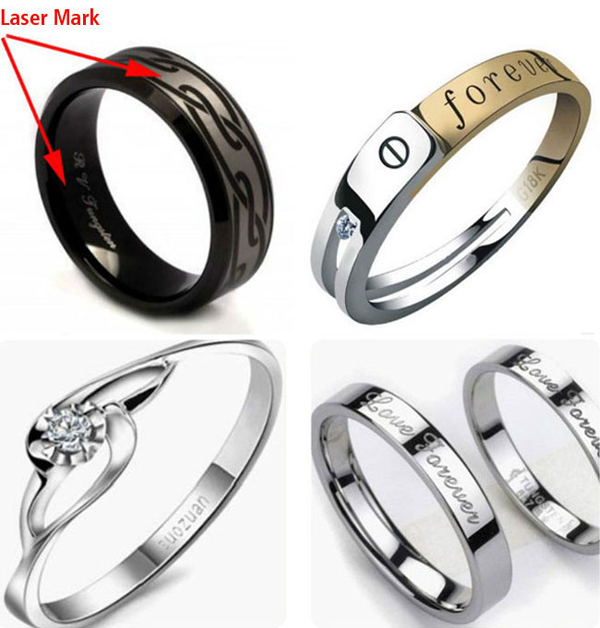

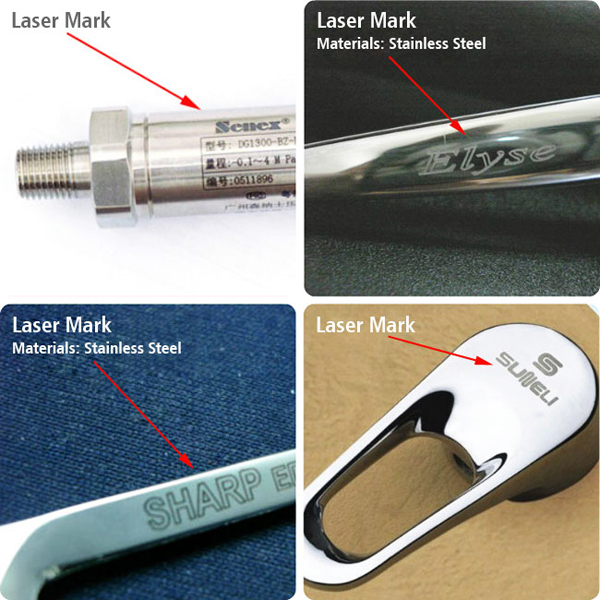

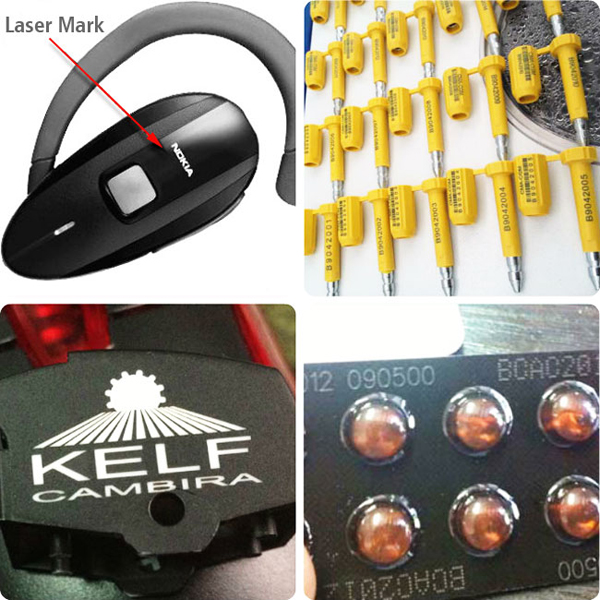

Application industrial for this S005 10W/20W/30W/50W Fiber Laser Engraver Marker Machine Equipment System for Metal: Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.

The material this S005 10W/20W/30W/50W Fiber Laser Engraver Marker Machine Equipment System for Metal

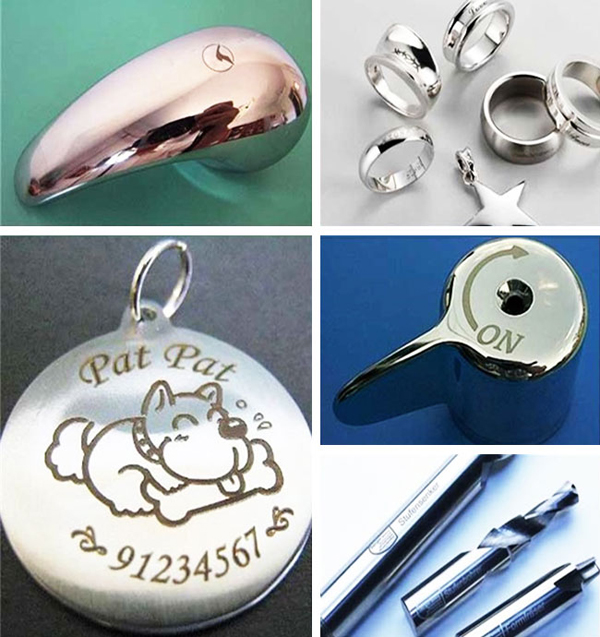

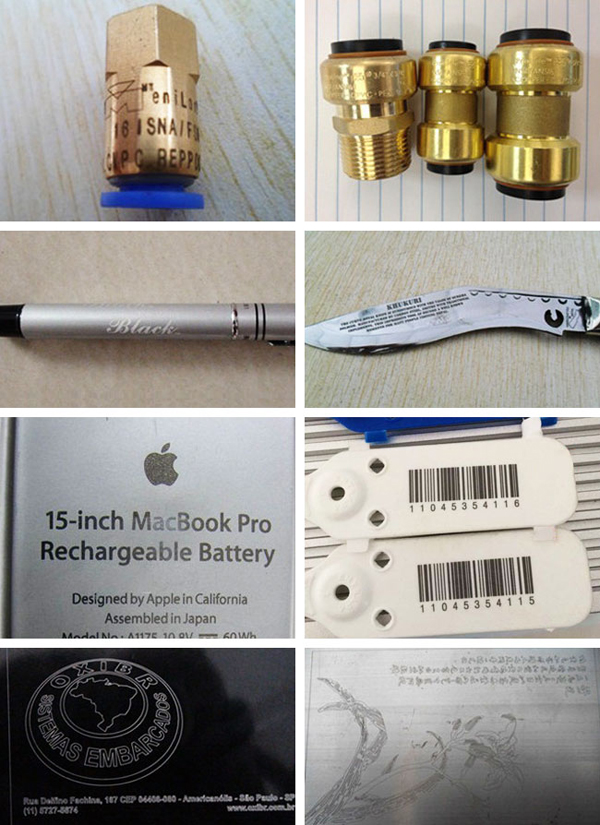

Engraving bar codes, decorative map, LOGO, factory number, production date, dial on all Metals ( Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card ), Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)








Weight:80KGS

Outside packing:100*75*158cm

Gross weight: 115KG

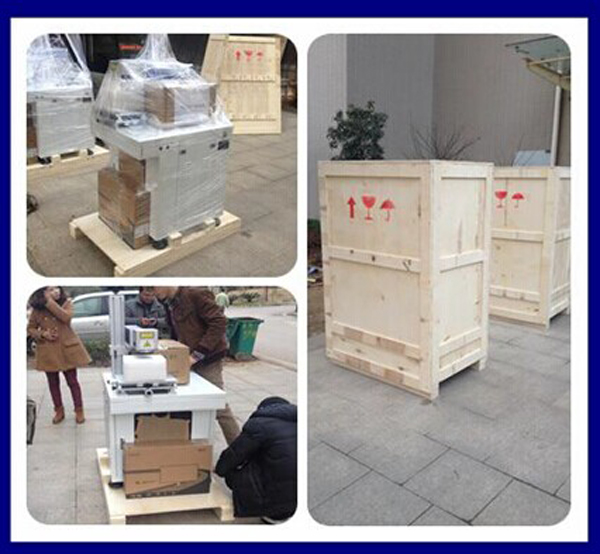

fiber laser marking machine packing
