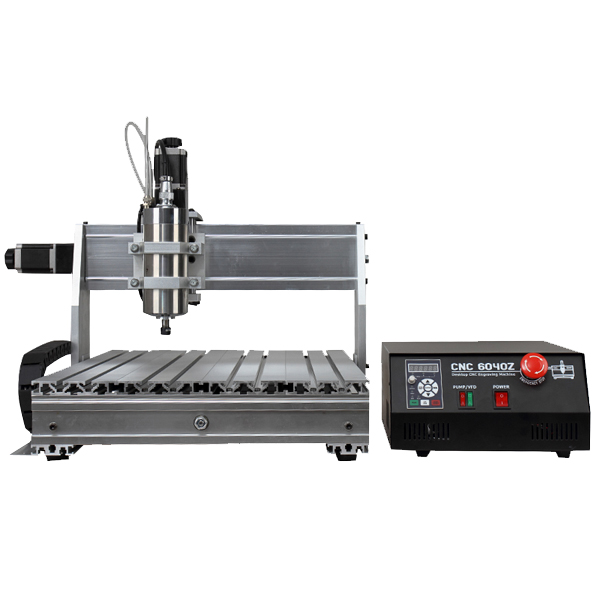

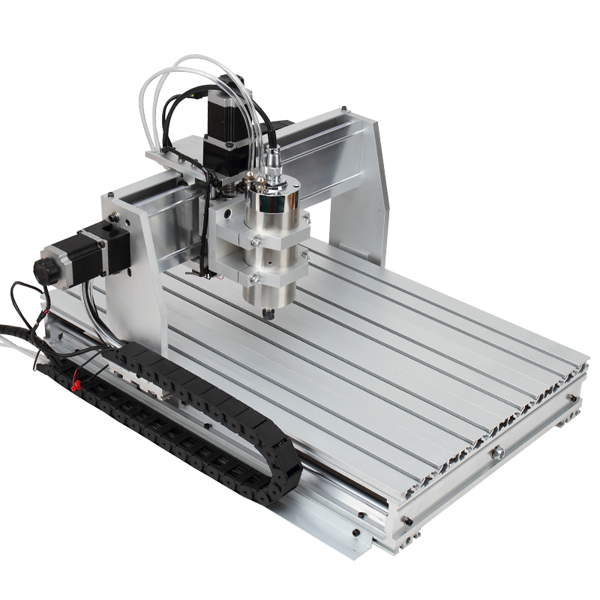

CNC 6040Z-S80 DIY 3 Axis CNC Router Hobby (800W Spindle)

Buy cnc 6040z-s80, cnc router hobby, 3 axis cnc router, cnc 6040z,diy 3 axis cnc from ChinaCNCzone. We can not just supply high quality cnc 6040z-s80 3 axis CNC router, but more can save your time, your money, your trouble and provide solutions.

We're here to help:

Easy ways to get the answers you need.

0086-755-83692414
0086-755-89378931
sales02atscotlecom

Main features for CNC 6040Z-S80 DIY 3 Axis CNC Router Hobby

1. USB Interface easy to be connected with notebook and computer.

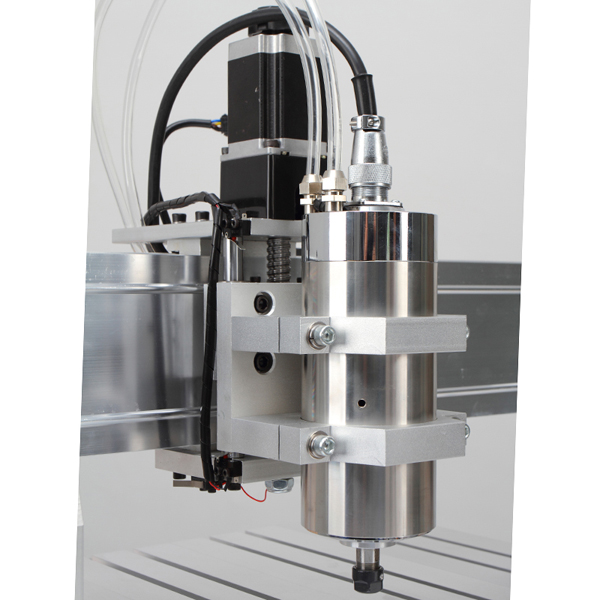

2. 800W water cooled spindle

3. 110V/220V available

4. 3 Axis and can be upgraded to 4 Axis cnc router when needed

5. Ball screw high precision

6. Spindle diameter 65mm

7. Mach 3 cnc software

8. With limit switch, protect the machine efficiently

9. With auto checking function

10. Good design with Steady and strong equiped with aluminum alloy frame materials.

11.spindle motor knob can realize small positioning adjustment.

12. Thick machine body makes safe shipping and working

13. Chrome shafts prolongs using life

14. Large 3D engraving in soft wood, MDF board, native wood, PVC, Acrylic, aluminum, brass, non ferrous metal and so on.

15. Flexible coupling can be used for high torque transmission.








ChinaCNCzone Team


ChinaCNCzone Mini CNC Router




 ChinaCNCzone Certificate





Technical details for this CNC 6040Z-S80 DIY 3 Axis CNC Router Hobby

Effective working travel580(X)mm*400(Y)mm*75(Z)mm
Shape dimension880*670*530mm
Max.workpiece dimension580mm*400mm<90mm
Work table dimension750mm*480mm
Frame materialsaluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let  counterfeiters dwarfs
acceptable material thickness≤100mm
Driving unitsX/Y/Z axis1605 ballscrew
Sliding unitsX axisDia.16mm chrome plate shafts
Y axisDia.20mm chrome plate shafts
Z axisDia.13mm chrome plate shafts
Stepping motor type 57 two-phase 3A 150NNaN
Spindle motorBrand new 800W/1500W water cooling spindle, 24000RPM
Principal axis colletER11/3.175 mm/6mm
Repeat accuracy0.05mm
Spindle precisionradial beat acuities 0.03 mm
Carving InstructionsG code/TAB files/nc file/NCC files
Communication interfacethrough parallel connection with computer
Software environmentWindows xp
Maximum speed0-4000mm/min
Carving speed0-2500mm/min (different materials differ)
Control unitToroidal transformer + PWM power supply module + TB6560 3axis drive board
Computer connectionon board palrallel port
Command codeG code
Acceptable softwareMach3
ProtectionEmergency stop button
Operating VoltageAC110V/AC220V



This CNC 6040Z-S80 DIY 3 Axis CNC Router Hobby can be widely used as below:

Packing list for this CNC 6040Z-S80 DIY 3 Axis CNC Router Hobby
1pc Hobby CNC Router 6040 3 Axis machine body
1pc 800W spindle
1pc parallel cable
1pc power cable
6pc router bits
1set of clamp tool
1pc USB cable
PS: Provide machine manual and mach3 software for free


Packing:  2 carton boxes (55KG)

Packing size:  60*52*43cm(top) and 80*22*63cm(bot)
