2200W Spindle CNC6040 New Small Diy Homemade Desktop Hobby CNC Router Machine

China Manufacturer for CNC6040 New Small Diy Homemade Desktop Hobby CNC Router Machine with 2200W Spindle Price competitive

We're here to help:

Easy ways to get the answers you need.

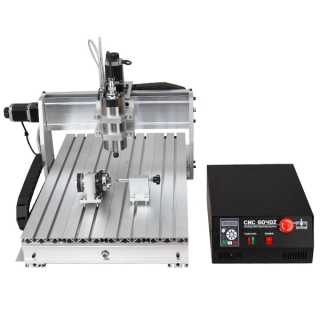

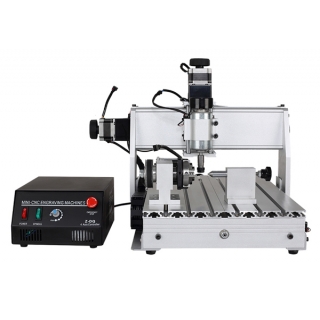

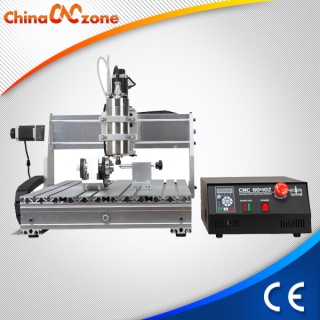

CNC6040 New Small Diy Homemade Desktop Hobby CNC Router machine with 2200W Spindle

1. USB Interface easy to be connected with notebook and computer.
2. 2200W water cooled spindle
3. 110V/220V available

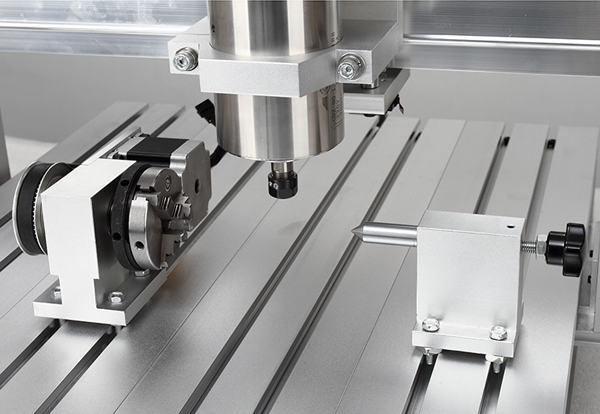

4.  3 Axis and 4 Axis for your selection

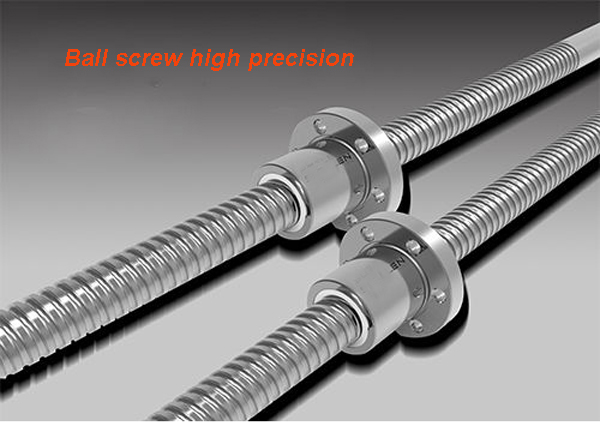

5. Ball screw high precision
6. Spindle diameter 65mm
7. Mach3 cnc software
8. With limit switch, protect the machine efficiently
9. With auto checking function
10. Good design with Steady and strong equiped with aluminum alloy frame materials.
11.spindle motor knob can realize small positioning adjustment.
12. Thick machine body makes safe shipping and working
13. Chrome shafts prolongs using life
14. Large 3D engraving in soft wood, MDF board, native wood, PVC, Acrylic, aluminum, brass, non ferrous metal and so on.
15. Flexible coupling can be used for high torque transmission.

ChinaCNCzone team always welcome customers from all over the world to visit our factory, and let us provide the best diffirent models mini CNC routers for users together.

ChinaCNCzone Team

ChinaCNCzone Mini CNC Router


 ChinaCNCzone Certificate

CNC6040 New Small Diy Homemade Desktop Hobby CNC Router Machine technical details

Effective   working travel580(X)mm*400(Y)mm*75(Z)mm
Shape   dimension880*670*530mm
Max.workpiece   dimension580mm*400mm<90mm
Work   table dimension750mm*480mm
Frame materialsaluminum   alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let    counterfeiters dwarfs
acceptable   material thickness≤100mm
Driving unitsX/Y/Z   axis1605   ballscrew
Sliding unitsX axisDia.16mm   chrome plate shafts
Y axisDia.20mm   chrome plate shafts
Z axisDia.13mm   chrome plate shafts
Stepping   motor type 57   two-phase 3A 150NNaN
Spindle   motorBrand   new 800W/1500W water cooling spindle, 24000RPM
Principal   axis colletER11/3.175   mm/6mm
Repeat   accuracy0.05mm
Spindle   precisionradial   beat acuities 0.03 mm
Carving   InstructionsG   code/TAB files/nc file/NCC files
Communication   interfacethrough   parallel connection with computer
Software   environmentWindows   xp, Windows 7
Maximum   speed0-4000mm/min
Carving   speed0-2500mm/min   (different materials differ)
Control unitToroidal   transformer + PWM power supply module + TB6560 3axis drive board
Computer   connectionon   board palrallel port/ USB interface
Command   codeG   code
Acceptable   softwareMach3/  CNC USB software
ProtectionEmergency   stop button
Operating   VoltageAC110V/AC220V
Water   cooled spindle2200W

CNC6040 New Small Diy Homemade Desktop Hobby CNC router Machine is with 2200W

water cooled spindle, much powerful can engrave acrylic, aluminum, brass, wood, PVC, PCB,

Resin and so on.

Mini CNC Router use

Mini CNC Router Application
CNC Router 6040 Can Do

3040 CNC Router for Aluminum

Packing list for this 2200W Spindle CNC6040 New Small Diy Homemade Desktop Hobby CNC Router Machine

1pc CNC 6040

1pc 2200W spindle
1pc parallel cable
1pc power cable
6pc engraving bit
1set of clamp tool
1pc USB cable
PS: Provide machine manual and mach3 software for free
Packing:  2 carton boxes (55KG)
Packing size:  60*52*43cm(top) and 80*22*63cm(bot)
