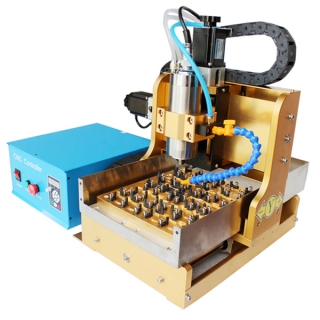

ChinaCNCzone S002 IC CNC Router Grinding Polishing Machine

Buy IC CNC Router, IC Grinding Machine, IC Polishing Machine from ChinaCNCzone at factory price.

We're here to help:

Easy ways to get the answers you need.

0086-755-83692414
0086-755-89378931
sales02atscotlecom

High lights for this S002 automatic IC CNC Router Grinding Polishing Machine
1. One key return to origin
2. Limit switch protection
3. Power outage continued carving
4. Break continuation
5. Fast and stable performance, high precision
6. USB connected to the computer

You may interested in:

What we can use an IC CNC Router Grinding Polishing Machine to do?


ChinaCNCzone Certificate



ChinaCNCzone Culture
ChinaCNCzone Team




S002 IC CNC Router Grinding Polishing Machine Parameters
Power110V/220V
Dimensions540*540*460mm
Worktable size450*240*20
Material6061 aluuminum alloy and 6063
anodizing aluminum profile
Effective working area200*300*80mm
Max. workpiece thickness800mm
Slid unitXφ20, Yφ20, Zφ12
Drive unitTBI SFU 1605 ball screw
Stepping motor57-5.6A 2 phase high current
Rapid Traverse4000mm/min
Engraving speed50-3500mm/min
Pricessing precision0.02mm-0.03mm
SpindleAC800w servo motor, radical runout<0.005mm, 0-24000rpm/min
ColletER11
SoftwareMach 3
Cooling wayWater cooling
Net weight40kg


This IC S002 IC CNC Router Milling Polishing Engraving Machine is perfect to grind and remove the CUP, HHD, WIFI, FONT chips in iPhone series mobile phone without any damage in the board.

It is effective machine to help you repair the iPhone 4, 4S, 5, 5C and 5S.

new cnc polishing machine for mobile refurbishing

Iphone chip repairing machineIC Engraving Machine for iphone ipad refurbish



5d481c62-79a8-4bbb-99d0-0a35d4bf27fd

IC chip repair machine
How to use this S002 IC CNC Router Milling Polishing Engraving Machine
Step 1. Calibration plane and began roughing
Step 2. Roughing complete
Step 3. Start finishing
Step 4. Finishing complete

3be77549-e663-4551-852f-e5b3c6ae4f0f

3be77549-e663-4551-852f-e5b3c6ae4f0f


Packaging & Delivery

Packaging Details:wooden case

Delivery Detail:1-3workdays after payment is confirmed.


The Packing list for this S002 IC CNC Router Milling Polishing Engraving Machine
accessories of IC grinding machine


1. Vacuum cleaner * 1, for selection
2. Water pump * 1
3. USB cable * 1
4. Corn milling cutter *10
5. Tool box * 1
6. Power cable * 1
7. Grease * 1
8. Square nuts * 4
9. Wrench * 8
10. Auto checking tool * 1
11. CD with Mach3 software and grinding program * 1
12. ER11 removal wrench * 2
