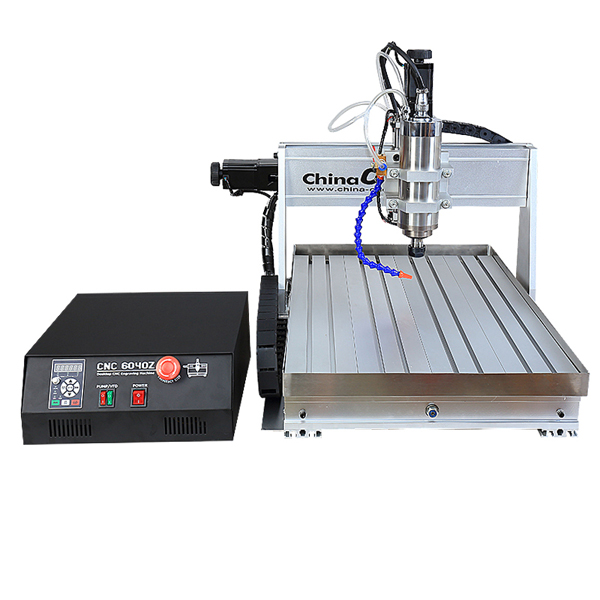

ChinaCNCzone New DSP USB Mach3 CNC 6040 3 Axis with 1500W 2200W Spindle and Water Sink Cool System

We're here to help:

Easy ways to get the answers you need.

0086-755-83692414
0086-755-89378931
sales02atscotlecom

What is the main features for this New DSP USB Mach3 CNC 6040 3 Axis CNC router?

1.It has 1500W and 2200W water cool spindle for selection.

2.It has three different types of controllers according to users' need.(USB controller box for 3.USB CNC software and parallel port for mach3 cnc software, DSP controller box no need use mach3 software, and mach3 USB controller box for mach3 software.)

4.This 3 axis CNC version can updated into 4 axis CNC router easily.(You just need to buy the 4th axis to install than use.)

5.The Z axis effective working area is 105mm, and accept material thick 145mm.

6.Ball screw high precision.

7.Independent power supply for mainboard, prolong using life.

8.Limited switch added.

9.Auto-Checking function.

10.Can engrave material such acrylic, brass, wood, aluminum, PCB and so on.

11.Spindle diameter: 80mm

12.With water sink cool system.

13.From professional china mini CNC router manufacturer.


What is the dimension for this 6040 CNC router 3 Axis?

CNC 6040 dimension.jpg


What is the new for the Z axis for this CNC 6040 3 Axis?

CNC 6040 Z axis.jpg



Why add the Sink cooling system ?

Water cool system.jpg

CNC 6040 water sink system.jpg

1.It can cool the spindle and protect the machine.
2.Avoid the spindle burn out.when you
3.Can engrave the high hardness or metal
4.It can improve the efficiency and accuracy of the machine.



What are the advantages of the USB controller box?

1.with the USB CNC cable, you can use the usb CNC software

2.with the parallel port, you can use the mach3 software

3.High performance, lower cost.


USB controller box.jpgUSB CNC To 25 Pins transfer cable


What are the advantages of the DSP controller box?
1. with the DSP controller box with independent DSP system,the mini CNC router can work without a computer.
2. After copy the G-code to your SD card, you can insert TF memory card to the TF card slot on the DSP controller box, and then run the G-code directly,
3. G-code files can be directly edited, delete, insert through the DSP controller system.
4.Very easy to operate and suitable for factory application.
5. Select the mini CNC router with DSP controller system, NO need to to use the mach3 software any more.

DSP controller box.jpg

What are the advantages of the Mach3 USB controller box?

1.For the users who familiar with mach3 software, select this controller, you can use the mach3 software easily through the USB interface directly.

2.High performance, time saving and cost a little higher.

Mach3 USB Controller box.jpg

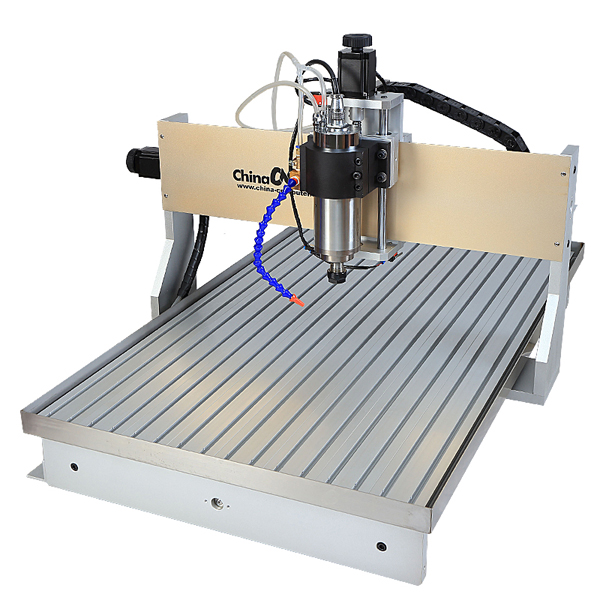

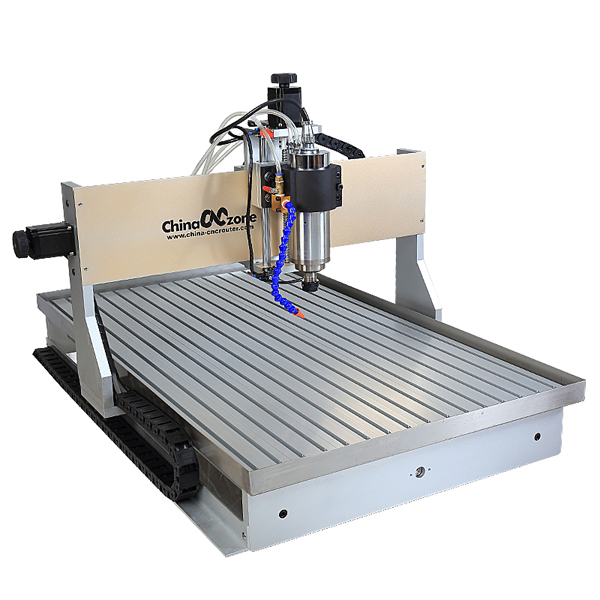

More pictures for this CNC 6040 3 axis router:

DSP CNC 6040.jpg

cnc 6040.jpg

cnc 6040.jpg

CNC 6040.jpgBall Screw






This CNC 6040 router parameters as below
Effective working travel580(X)mm*400(Y)mm*105(Z)mm
Shape dimension880*670*640mm
Max.workpiece dimension750mm*450mm<150mm
Work table dimension750mm*480mm
Frame materialsaluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let  counterfeiters dwarfs
acceptable material thickness≤145
Driving unitsX axis1605 ballscrew
Y axis1605 ballscrew
Z axis1605 ballscrew
Sliding units X axisDia.16mm chrome plate shafts
Y axisDia.20mm chrome plate shafts
Z axis Dia.13mm chrome plate shafts
Stepping motor type 57 two-phase 3A 150N.cm
Spindle motorbrand new 1.5KW water cooling spindle, 24000RPM
Principal axis collet ER11/3.175 mm/6mm
Repeat accuracy0.05mm
Spindle precisionradial beat acuities 0.03 mm
Carving InstructionsG code/TAB files/nc file/NCC files/DXF file/GERBER file
Communication interfacethrough parallel and USB connection with computer,DSP and Mach3 USB
Software environmentWindows xp/Win7/Win8/Win10
Maximum speed0-4000mm/min
Carving speed0-2500mm/min (different materials differ)
Control unitToroidal transformer + PWM power supply module + TB6560 3axis drive board
Computer connectionparallel port/USB port
Command codeG code
Acceptable softwareMach3,USBCNC
ProtectionEmergency stop button
Operating VoltageAC110V/AC220V
Machine weight (Package weight)3 axis 82KG, 4 axis 85kg
package dimensiontop:122*86*83


This CNC 6040 is suitable for woodworking, Advertising Design, Mold Industry, Stone Carving, Handicraft industry , Arts Creation, Teaching, Student Project and Hobby Purposes.


This CNC 6040 is a desktop CNC router  and hobby CNC router, designed for processing Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.



HY-3040 mini desktop 5 Axis CNC machine can do

CNC Router 6040 Can Do


3040 CNC Router for Aluminum

CNC 6090



CNC 6090 Packing


Wooden box

85KG , 88*67*72
